| Manufacturer | LG Display |
| Model Name | LM238WR2-SPE1 |
| Screen Size | 23.8 inch |
| Pixel Number | 3840(RGB)×2160, UHD |
| Active Area(mm) | 527.04 × 296.46 (H×V) |
| Outline(mm） | 544.7 × 323.2 × 13.8 (H×V×D) |
| Pixel Pitch(mm) | 0.1369 × 0.1369 (H×V) |
| Treatment |
Low-Reflective treatment of the front polarizer (2H)
|
| Luminance | 540 cd/m² (Typ.) |
| Contrast Ratio | 1000 : 1 (Typ.) (TM) |
| Viewing Angle | 89/89/89/89 (CR≥10) Left / Right/UP /Down |
| Response time | 14 (Typ.)(Tr/Td) ms |
| Display Mode | IPS , Normally black , Transmissive |
| Color Depth | 1.07B , 98% DCI-P3 |
| Backlight | WLED , 30K hours , without Driver |
| Net Weight | 2.19/2.3Kgs (Typ./Max.) |
| Touchscreen | without |
| Signal Type/interface Type | eDP (4 Lanes) , HBR2 (5.4G/lane) , 30 pins |
| Voltage Supply | +10.0 V |
| Max. Ratings | Storage Temp.: -20 ~ +60 (°C) Operating Temp.: 0 ~ +50 (°C) |
| Package | LG Display original package; 10 pcs/ctn; size : 635(L) x 370(W) x 400(H) mm |

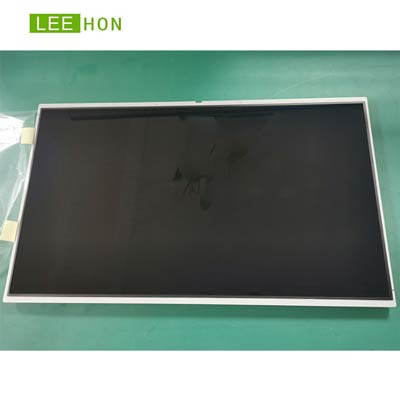

LG Display 23.8 inch tft lcd ips panel LM238WR2-SPE1 with 3840(RGB)x2160 UHD resolution, brightness 540 cd/m². This lcd display's working temperature is 0 ~ +50 (°C) and it's storage temperature is -20 ~ +60 (°C). Based on it's white LED backlight. This model is recommended for Industrial use.
Matched resistive touch and capacitive touch available. Also we have matched HDMI driver board and eDP cables.
23.8 Inch 3840*2160 4K LCD Screen original LG Display TFT IPS Panel LM238WR2-SPE1 support 540 nits and eDP interface.
Hangzhou LEEHON Technology is one of the main agents of AUO/BOE / Kyocera/ Innolux TFT- LCD module in China
mainland, founded in 2009, the products vary from 2.5 to 43 inches, which include GD (Industrial grade), AV (car class),
PID (General Application) and other related products etc.,superior quality and competitive price, our products are sold
very well in North&South America, Western Europe and Southeast Asia.
We can supply total set of display solution:
TFT LCD screen + touch screen + controller board + cables + open frame.
stock for sale
long-time supply
no MOQ
in fulll range
