GT080X0M-N12-1QP0

Your location: Home > Products > BOE > 8" >
  • Module No:GT080X0M-N12-1QP0
  • Brand:BOE
  • Size:8 inch
  • Resolution:1024(RGB)×768 , XGA
  • Brightness:400 cd/m²
  • Viewing angle:75/75/75/70 (Typ.)
  • Interface:LVDS (1 ch, 8-bit) , FPC , 40 pins
  • CR:500:1
  • Operating Temp.: -20 ~ +70 (°C)
  • Parameters
  • Description
  • Manufacturer  BOE
    Model Name GT080X0M-N12-1QP0
    Screen Size 8 inch
    Pixel Number 1024(RGB)×768 , XGA

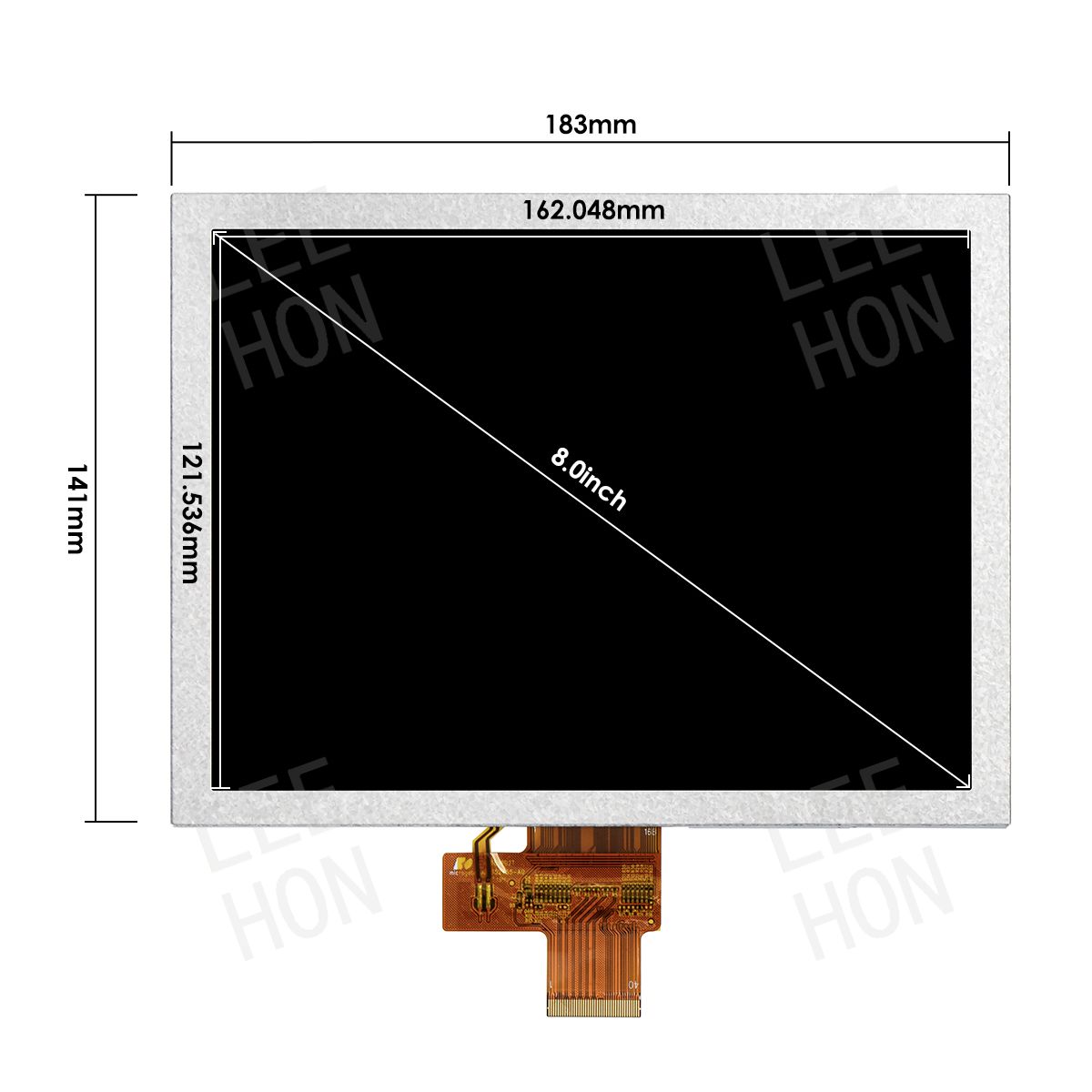

    Active Area(mm)
    162.05 (H) × 121.5(V)
    Outline(mm)
    183.0 (H) × 141.0(V) × 5.6(D)
    Bezel Area(mm) 162.05(h) × 121.5(v)
    Luminance 400 cd/m² (Typ.)
    Contrast Ratio 500 : 1 (Typ.) (TM)
    Viewing Angle 75/75/75/70 (Typ.)
    Response 20ms
    Work Mode
    TN , Normally White
    Color Depth 16.2M , 50% NTSC
    Backlight WLED , without driver
    Net Weight TBD
    Touchscreen without
    Signal Type/interface Type 40 pins , LVDS (1 ch, 8-bit) , FPC
    Max. Ratings Storage Temp.: -30 ~ +80 (°C)
    Operating Temp.: -20 ~ +70 (°C)
    Package  BOE original packaging;
    64 pcs/box
    GT080X0M-N12-1QP0
    GT080X0M-N12-1QP0
    GT080X0M-N12-1QP0
    GT080X0M-N12-1QP0
    GT080X0M-N12-1QP0
    GT080X0M-N12-1QP0
    GT080X0M-N12-1QP0
    GT080X0M-N12-1QP0
  • BOE 8 inch tft lcd panel GT080W0M-N12-1QP0 with 1024(RGB)x768 XGA resolution, brightness 400 cd/m². This lcd display's working temperature is -20 ~ +70 (°C) and it's storage temperature is -30 ~ +80 (°C). Based on it's white LED backlight. This model is recommended for industrial use.

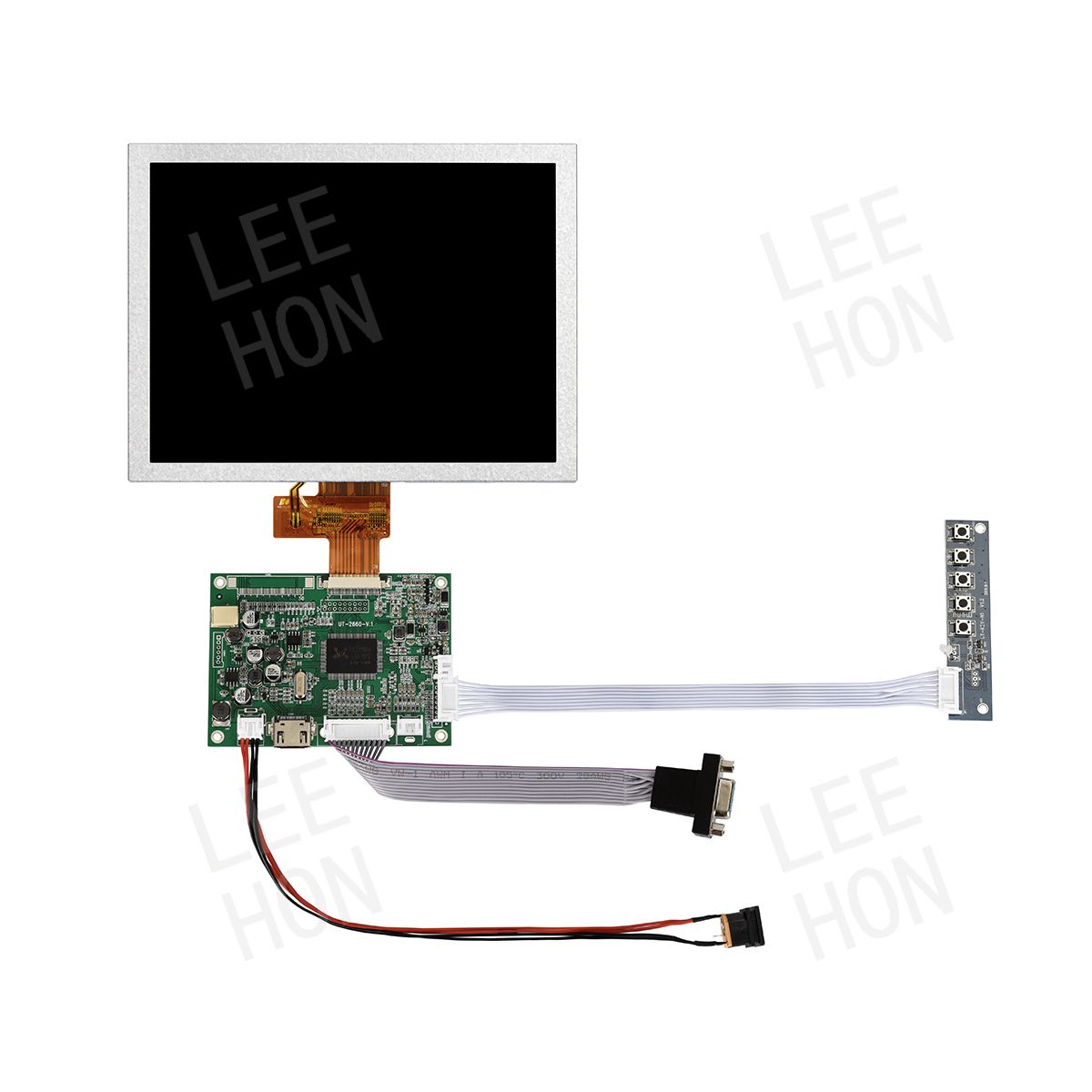

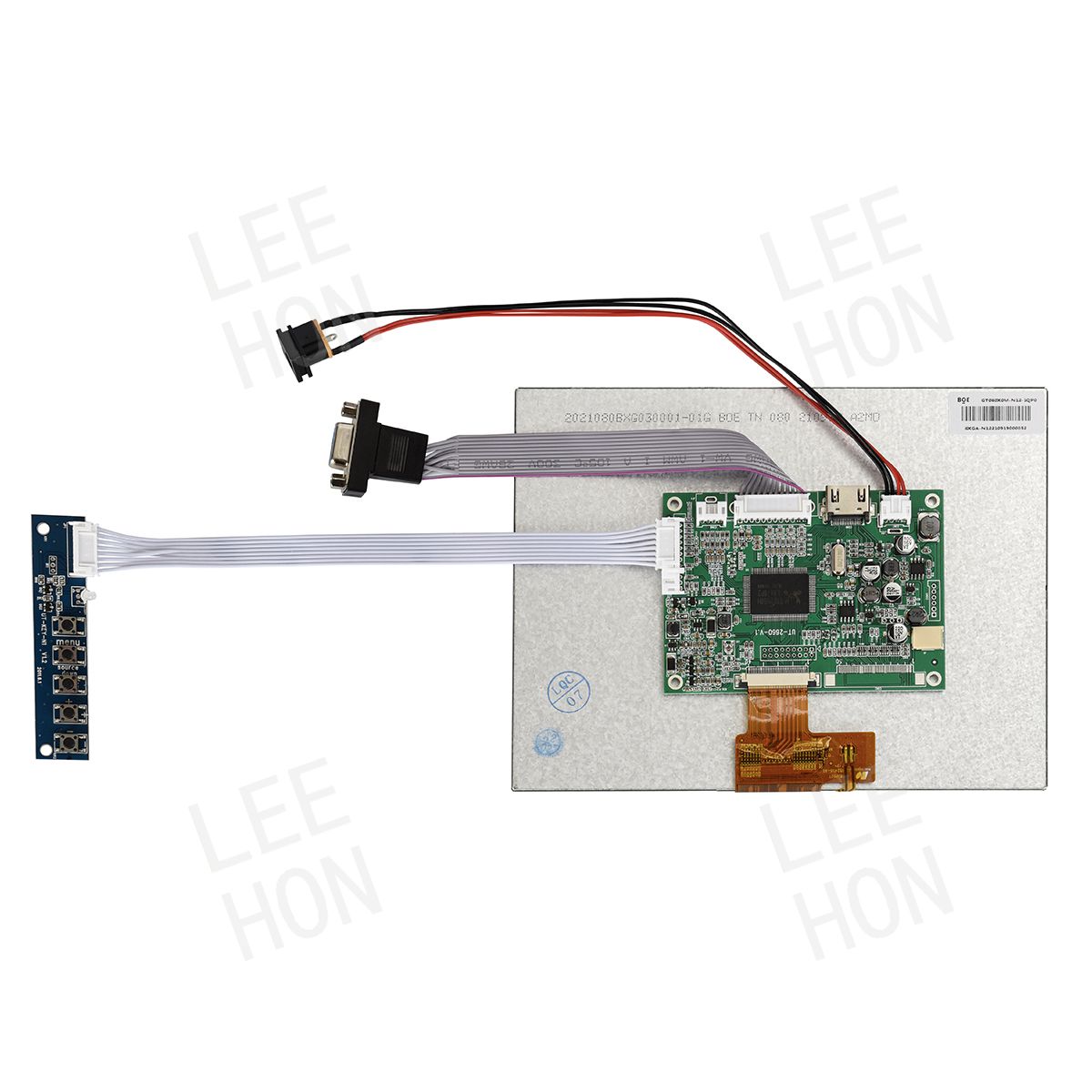

    Matched resistive touch and capacitive touch available. Also we have matched HDMI driver board.
    Industrial 8 inch 1024x768 XGA LCD Panel Original AUO TFT LCD Screen GT080W0M-N12 With 400nits and Controller board.

    boe
    Hangzhou LEEHON Technology is one of the main agents of AUO/BOE / Kyocera/ Innolux TFT- LCD module in China mainland, founded in 2009, the products vary from 2.5 to 43 inches, which include GD (Industrial grade), AV (car class), PID (General Application) and other related products etc.,superior quality and competitive price, our products are sold very well in North&South America, Western Europe and Southeast Asia.
    We can supply total set of display solution:
    TFT LCD screen + touch screen + controller board + cables + open frame.
