| Manufacturer | BOE |
| Model Name | ZV190E0M-N10 |
| Screen Size | 19 inch |
| Pixel Number | 1280(RGB)×1024, SXGA |

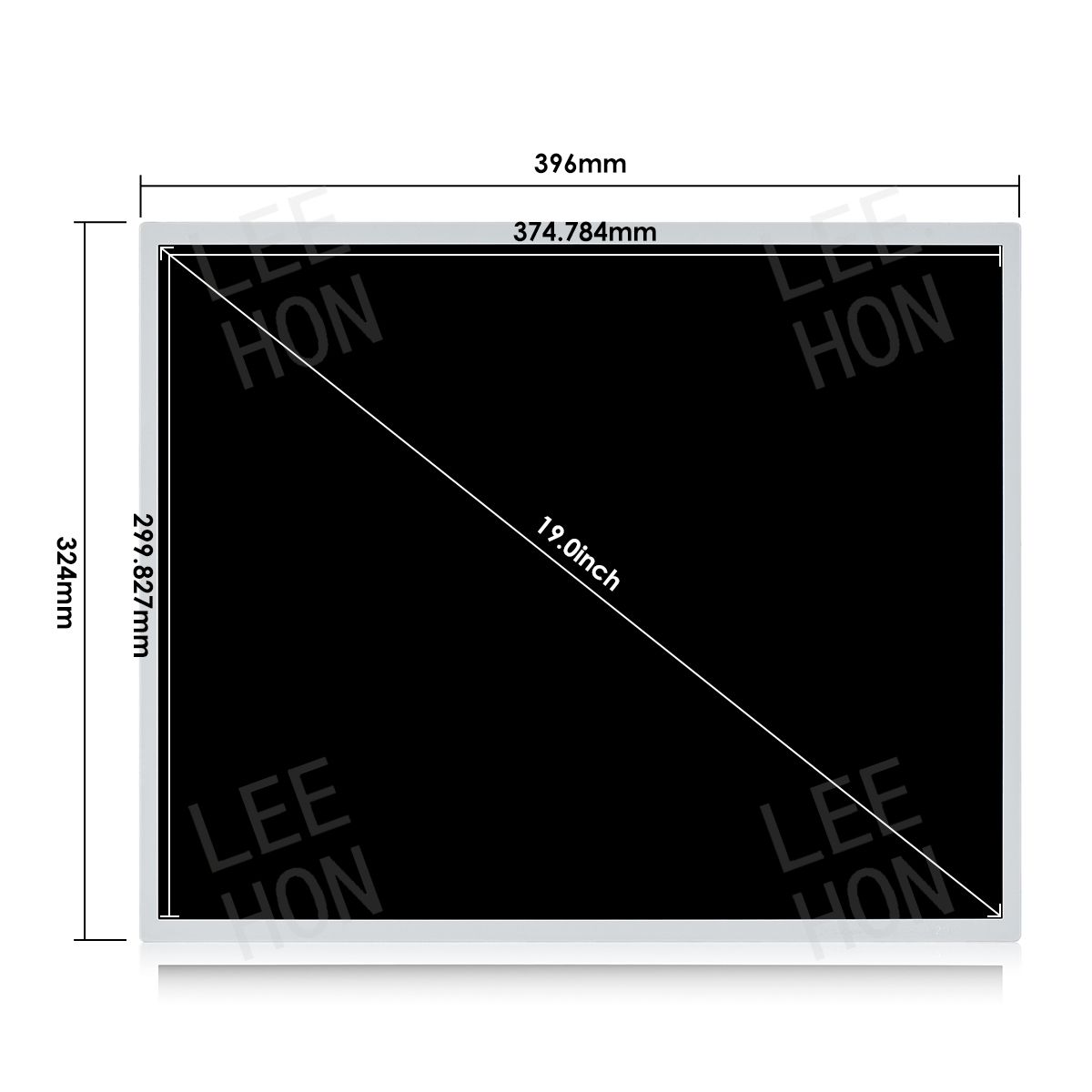

| Active Area(mm) |
374.784(H) × 299.8272(V)mm
|
| Outline(mm） |
396(H) x 324(V) x9.9(D)mm
|
| Bezel Area(mm) | 374.784(h)×299.827(v) mm |
| Luminance | 450 cd/m² (Typ.) |
| Contrast Ratio | 1000 : 1 (Typ.) (TM) |
| Viewing Angle | 89/89/89/89 (Typ.) |
| Response | 14 ms |
| Work Mode |
Normally Black
|
| Color Depth | 16.7M , 90% NTSC |
| Backlight | WLED,50K hours,with LED Driver |
| Net Weight | 1800g |
| Touchscreen | without |
| Signal Type/interface Type | LVDS (2 ch, 8-bit) , 30 pins |
| Max. Ratings | Storage Temp.: -20 ~ 75 °C Operating Temp.: -20 ~70 °C |
| Package | BOE Original packaging 10 pcs/carton |
BOE 19 inch tft lcd panel ZV190E0M-N10 with 1280*1024 resolution , brightness 450 cd/m².This lcd display is working temperature is -20~ 70 ° C and its storage temperature is - 20~ 75(° C).Based on its white LED backlight.This model is recommended for industrial use.

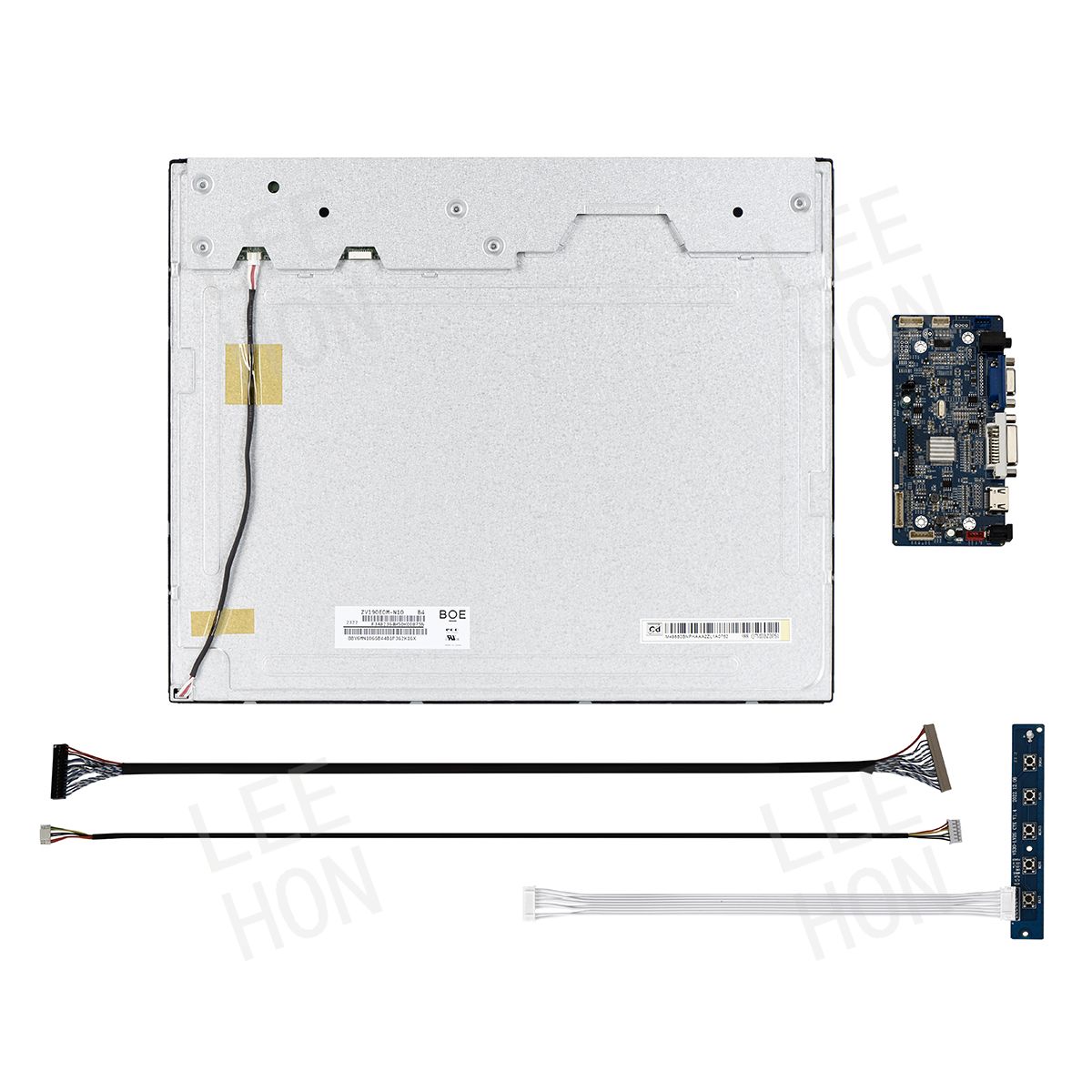

Matched Resistive touch and Capacitive touch available.also we have matched HDMI driver board and LVDS cables.
ZV190E0M-N10 19 inch 1280*1024 IPS BOE display tft customized lcd screen for Industry.
