DV190E0M-N11

Your location: Home > Products > BOE > 19" >
  • Module No:DV190E0M-N11
  • Brand:BOE
  • Size:19 inch
  • Resolution:1280*1024
  • Brightness:250 cd/m²
  • Viewing angle:89/89/89/89 (Typ.)
  • Interface:LVDS (2 ch, 8-bit) , 30 pins
  • CR:1000:1
  • Operating Temp.: 0 ~ 50(°C)
  • Parameters
  • Description
  • Manufacturer  BOE
    Model Name DV190E0M-N11
    Screen Size 19 inch
    Pixel Number 1280(RGB)×1024 SXGA

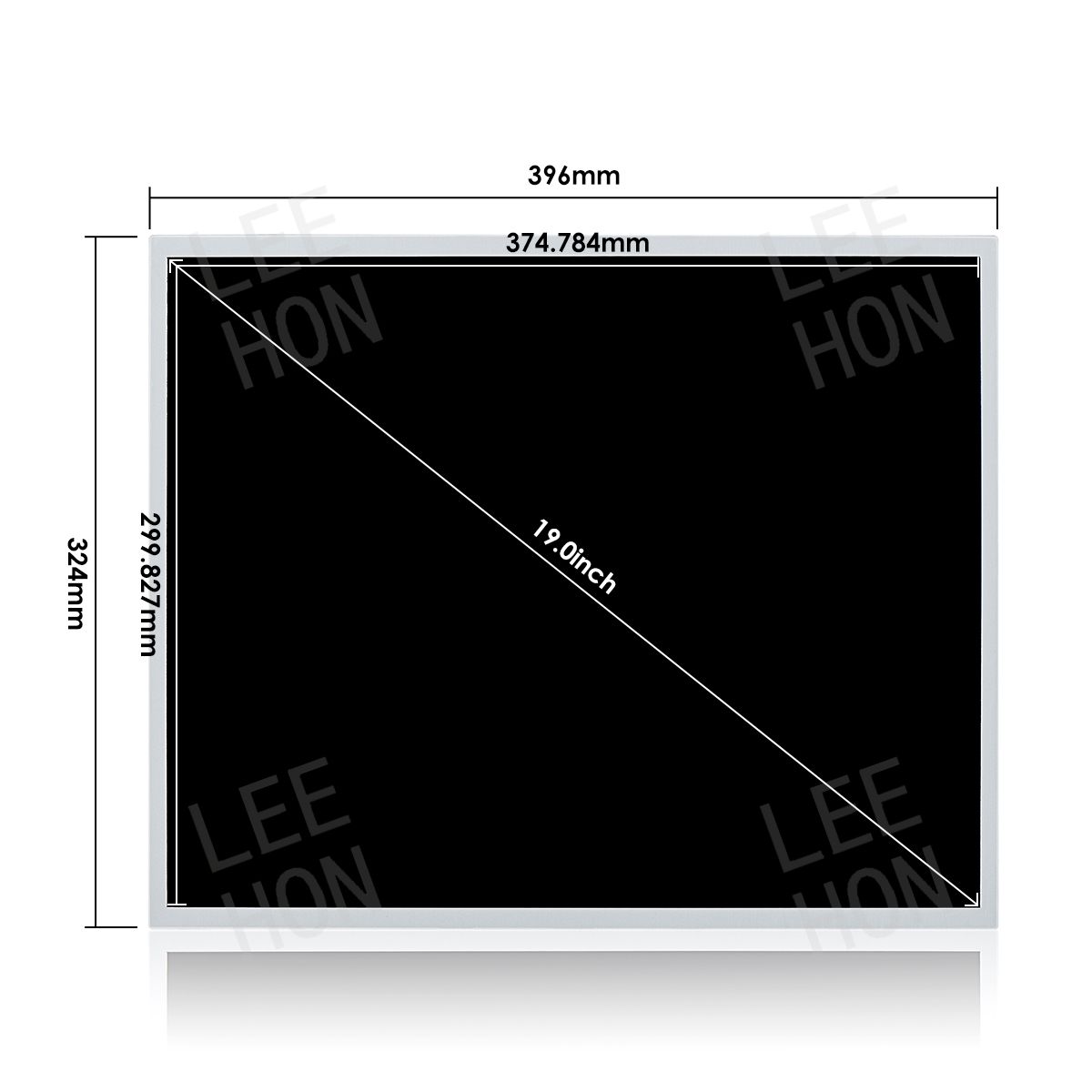

    Active Area(mm)
    374.784(H) × 299.8272 (V)mm
    Outline(mm)
    396.0(H) ×324.0(V)×9.9(D)mm
    Bezel Area(mm) 374.784(H)×299.827(V) mm
    Treatment
    Haze 25%, 3H
    Luminance 250 cd/m² (Typ.)
    Contrast Ratio 1000 : 1 (Typ.) (TM)
    Viewing Angle 89/89/89/89 (Typ.)
    Response 14 ms
    Work Mode
    Normally Black
    Color Depth 16.7M , 72% NTSC
    Backlight WLED,30K hours,without LED Driver
    Net Weight 1520G
    Touchscreen without
    Signal Type/interface Type 30 pins   LVDS (2 ch, 8-bit)
    Max. Ratings Storage Temp.: -20 ~ 60 °C
    Operating Temp.: 0 ~50 °C
    Package  BOE original package

    DV190E0M-N11DV190E0M-N11
    DV190E0M-N11
    DV190E0M-N11
    DV190E0M-N11
    DV190E0M-N11

  • BOE 19 inch IPS tft lcd panel DV190E0M-N11 with 1280*1024 resolution , brightness 250 cd/m².This lcd display is working temperature is 0~ 50 ° C and its storage temperature is  - 20~ 60(° C).Based on its white LED backlight.This model is recommended for industrial use.

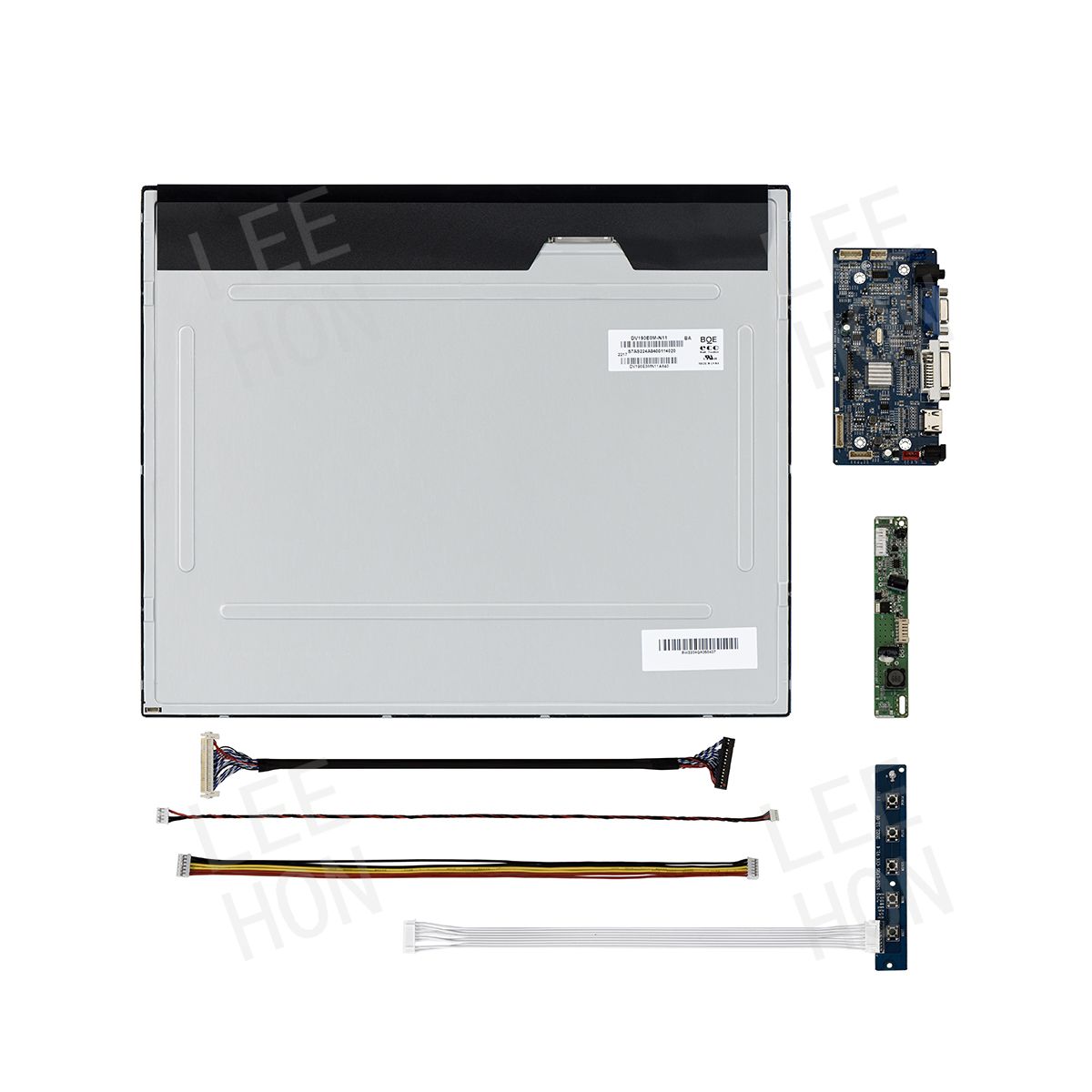

    Matched Resistive touch and Capacitive touch available.also we have matched HDMI driver board and LVDS cables.
    19 inch 1280*1024 IPS LCD BOE Display screen with Stocks DV190E0M-N11 For digital signage.

    boe

    Hangzhou LEEHON Technology is one of the main agents of AUO/BOE / Kyocera/ Innolux TFT- LCD module in China mainland, founded in 2009, the products vary from 2.5 to 43 inches, which include GD (Industrial grade), AV (car class), PID (General Application) and other related products etc.,superior quality and competitive price, our products are sold very well in North&South America, Western Europe and Southeast Asia.
    We can supply total set of display solution:
    TFT LCD screen + touch screen + controller board + cables + open frame.
    stock for sale
    long-time supply
    no MOQ
    in fulll range
