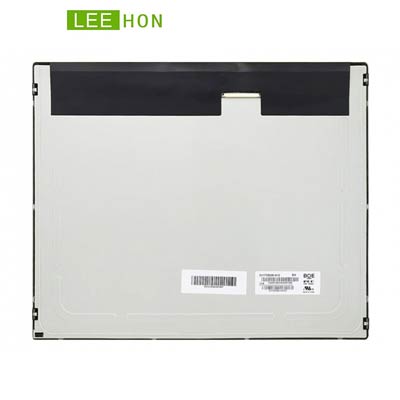

DV170E0M-N12

Your location: Home > Products > BOE > 17" >
  • Module No:DV170E0M-N12
  • Brand:BOE
  • Size:17 inch
  • Resolution:1280(RGB)×1024 , SXGA
  • Brightness:500 cd/m²
  • Viewing angle:89/89/89/89 (Typ.)
  • Interface:LVDS (2 ch, 8-bit) , 30 pins
  • CR:1000:1
  • Operating Temp.: -20 ~ +70 (°C)
  • Parameters
  • Description
  • Manufacturer  BOE
    Model Name DV170E0M-N12
    Screen Size 17 inch
    Pixel Number 1280(RGB)×1024  ,  SXGA
    Active Area(mm) 337.92 x 270.336 (H×V)
    Outline(mm) 358.5 x 296.5 x 7.7 (H×V×D)
    Pixel Pitch(mm) 0.264 x 0.264(H×V)
    Treatment
    Haze 25%, 3H
    Luminance 500 cd/m² (Typ.)
    Contrast Ratio 1000 : 1 (Typ.) (TM)
    Viewing Angle 89/89/89/89 (CR≥10) Left / Right/UP /Down
    Response time 20 (Typ.)(Tr/Td) ms
    Display Mode HADS , Normally black , Transmissive
    Color Depth 16.7M , 72% NTSC
    Backlight WLED , 30K hours , without Driver
    Net Weight 1.35Kgs
    Touchscreen without
    Signal Type/interface Type LVDS (2 ch, 8-bit) , 30 pins
    Voltage Supply +5.0 V
    Max. Ratings Storage Temp.: -20 ~ +7(°C)
    Operating Temp.: -20 ~ +70 (°C)
    Package BOE Original package;
    14 pcs/ctn;
    size : 512mm(L) x 442mm(W) x 357mm(H)
    BOE
  • BOE 17 inch tft lcd ips panel DV170E0M-N12 with 1280x1024 SXGA resolution, brightness 500 cd/m². This lcd display's working temperature is -20 ~ +70 (°C) and it's storage temperature is  -20 ~ +70 (°C). Based on it's white LED backlight. This model is recommended for industrial use.
    Matched Resistive touch and Capacitive touch available. Also we have matched HDMI driver board and LVDS cables.
    Original A Grade BOE 17 Inch 1280x1024 SXGA TFT LCD Panel IPS Display DV170E0M-N12 with 500nits, LVDS cables And Controller board.



    Hangzhou LEEHON Technology is one of the main agents of AUO/BOE / Kyocera/ Innolux TFT- LCD module in China mainland, founded in 2009, the products vary from 2.5 to 43 inches, which include GD (Industrial grade), AV (car class), PID (General Application) and other related products etc.,superior quality and competitive price, our products are sold very well in North&South America, Western Europe and Southeast Asia.
    We can supply total set of display solution:
    TFT LCD screen + touch screen + controller board + cables + open frame.
    stock for sale
    long-time supply
    no MOQ
    in fulll range
