| Manufacturer | BOE |
| Model Name | DV170E0M-N10 |
| Screen Size | 17 inch |
| Pixel Number | 1280(RGB)×1024 , SXGA |
| Active Area(mm) | 345.408 x 259.056 (H×V) |

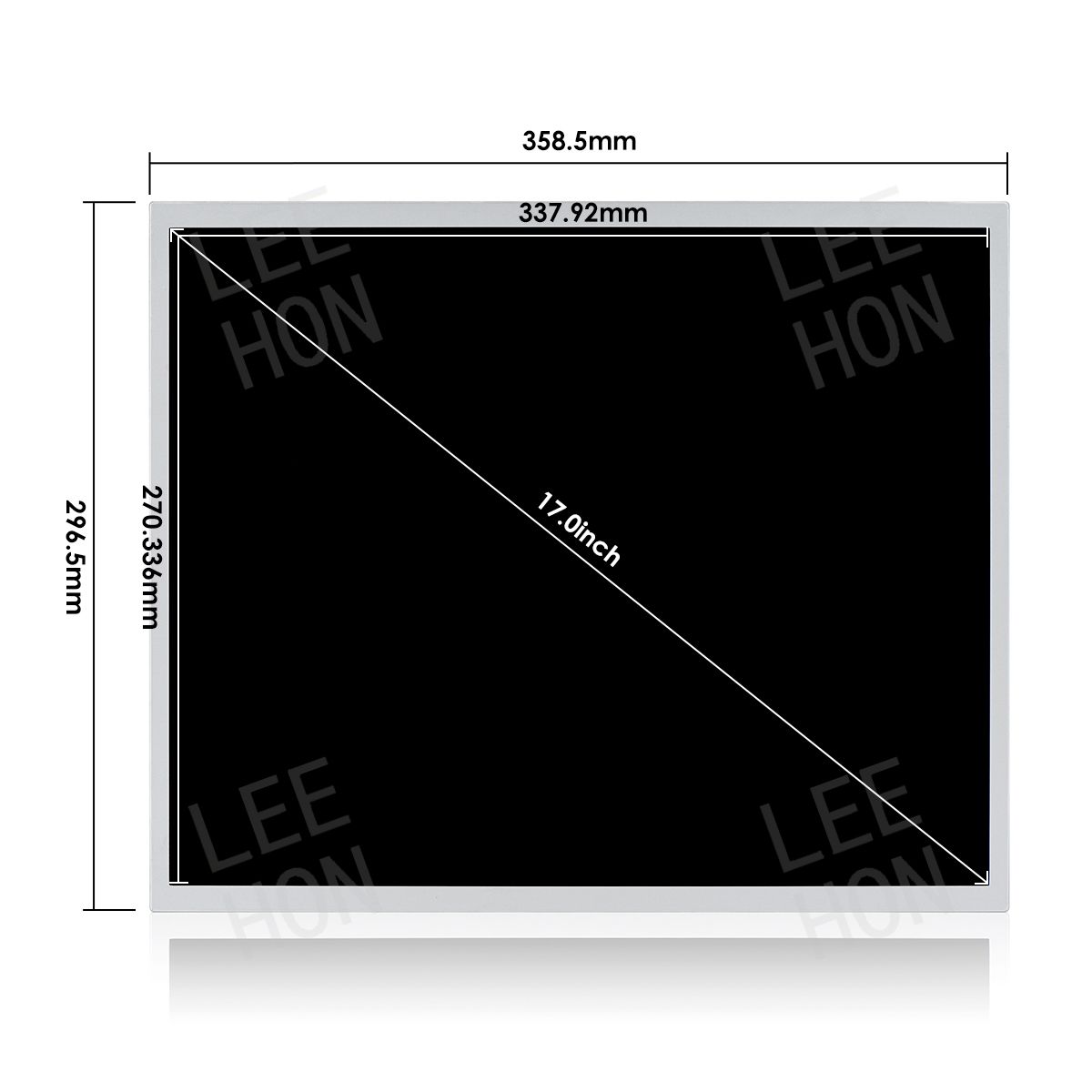

| Outline(mm） | 358.5 x 296.5 x 7.7 (H×V×D) |
| Pixel Pitch(mm) | 0.264 x 0.264 (H×V) |
| Treatment |
Haze 25%, 3H
|
| Luminance | 250 cd/m² (Typ.) |
| Contrast Ratio | 1000 : 1 (Typ.) (TM) |
| Viewing Angle |
89/89/89/89(CR≥10) Left / Right/UP /Down
|
| Response time | 20 (Typ.)(Tr/Td) ms |
| Display Mode | HADS , Normally black, Transmissive |
| Color Depth | 16.7M , 72% NTSC |
| Backlight | WLED , 30K hours, without Driver |
| Net Weight | 1.35Kgs |
| Touchscreen | without |
| Signal Type/interface Type | LVDS (2 ch, 8-bit) , 30 pins |
| Voltage Supply | +5.0 V |
| Max. Ratings | Storage Temp.: -20 ~ +60 (°C) Operating Temp.: 0 ~ +50 (°C) |
| Package | BOE Original package; 11 pcs/ctn; size : 520mm(L)×363mm(W)×375mm(H) |

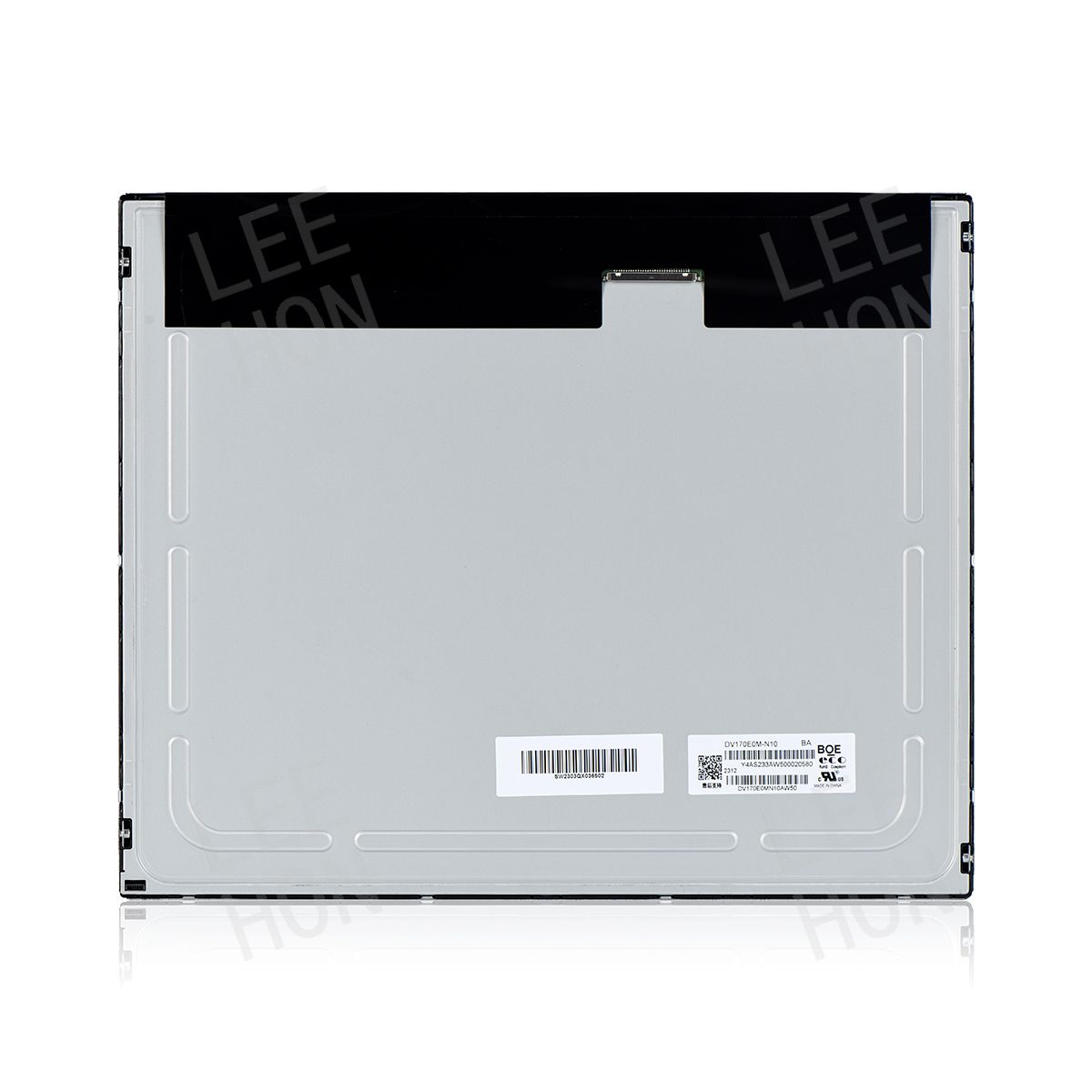

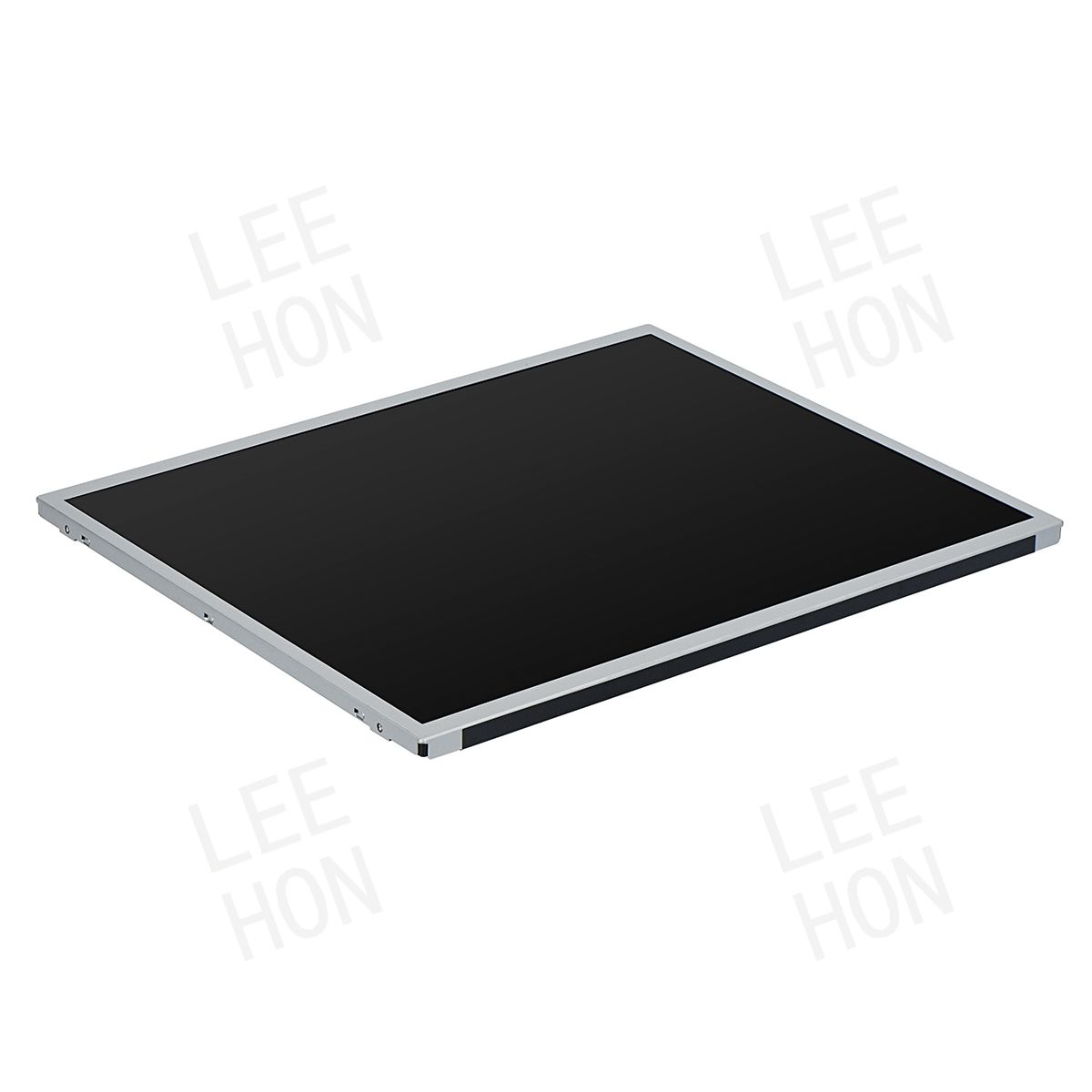

BOE 17 inch tft lcd panel DV170E0M-N10 with 1280x1024 SXGA resolution, brightness 250 cd/m². This lcd display is working temperature is 0 ~ +50 (°C) and its storage temperature is -20 ~ +60 (°C). Based on its white LED backlight. This model is recommended for industrial use.

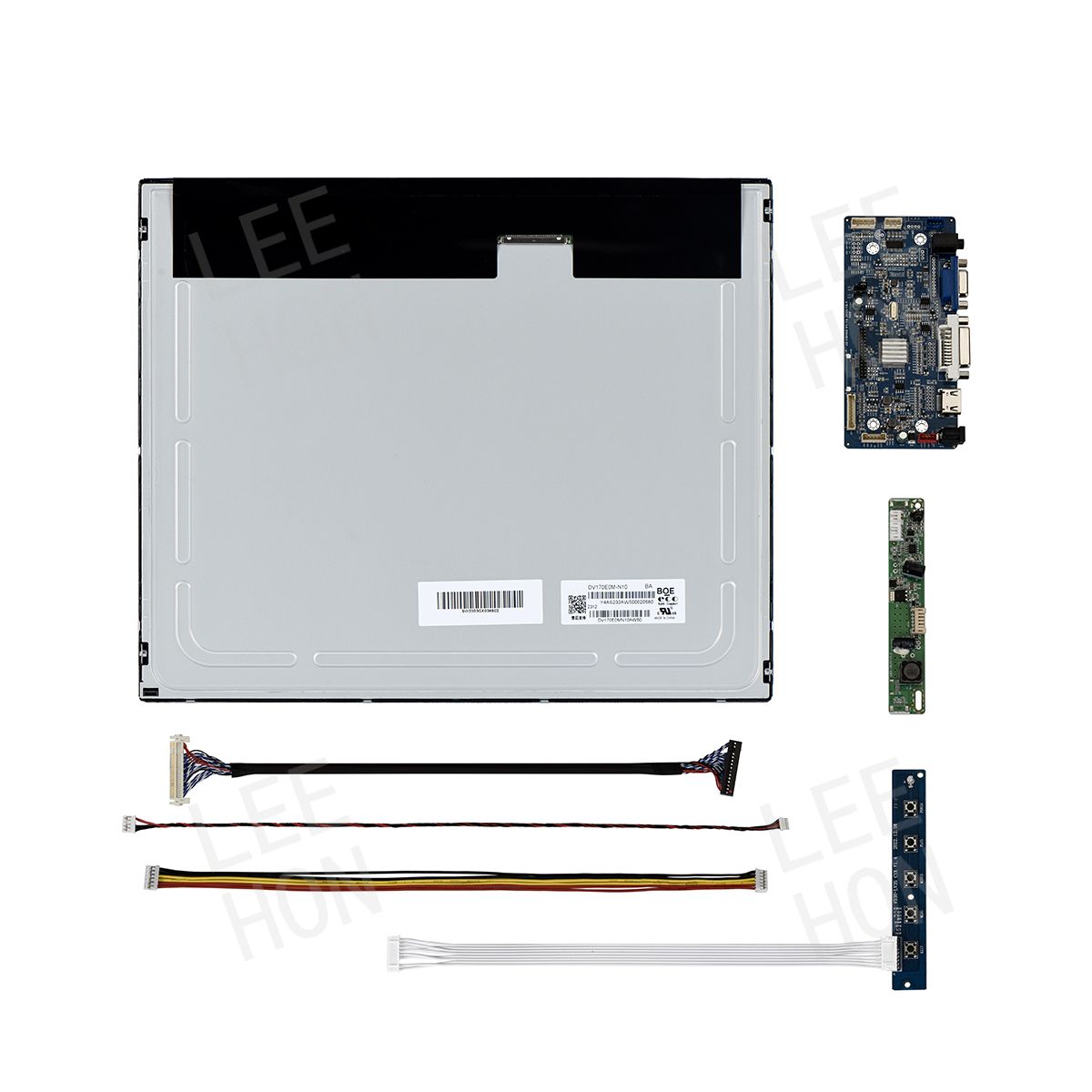

Matched Resistive touch and Capacitive touch available. Also we have matched HDMI driver board and LVDS cables.
Original BOE 17 Inch 1280x1024 SXGA TFT LCD Panel IPS LCD Display For Digital Signage DV170E0M-N10 With 250nit, LVDS 20 pins And Controller board.
Hangzhou LEEHON Technology is one of the main agents of AUO/BOE / Kyocera/ Innolux TFT- LCD module in China mainland, founded in 2009, the products vary from 2.5 to 43 inches, which include GD (Industrial grade), AV (car class), PID (General Application) and other related products etc.,superior quality and competitive price, our products are sold very well in North&South America, Western Europe and Southeast Asia.
We can supply total set of display solution:
TFT LCD screen + touch screen + controller board + cables + open frame.
stock for sale
long-time supply
no MOQ
in fulll range
