| Manufacturer | BOE |
| Model Name | DV150X0M-N10 |
| Screen Size | 15 inch |
| Pixel Number | 1024(RGB)×768 , XGA |

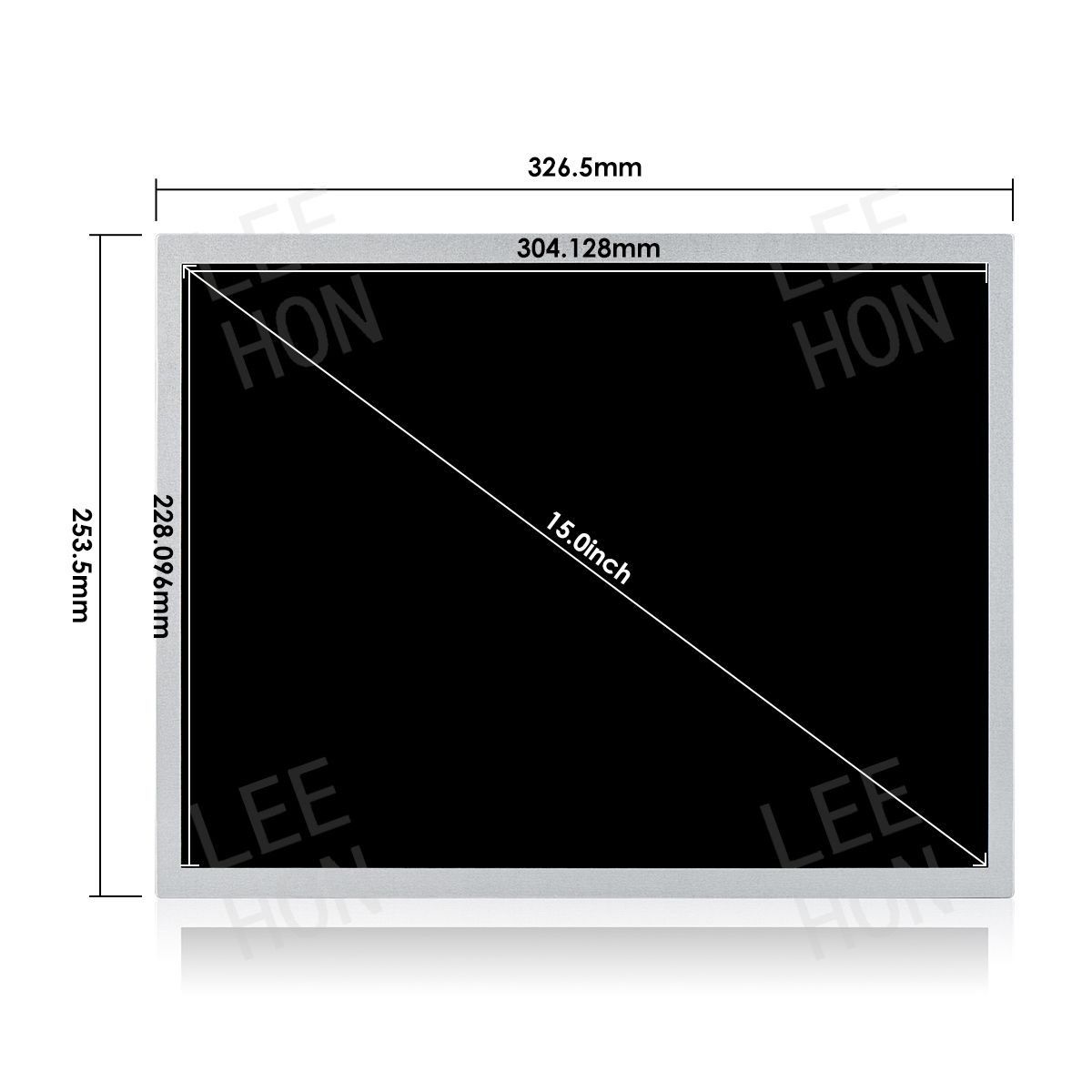

| Active Area(mm) | 304.128 × 228.096 (H×V) |
| Outline(mm） | 326.5 × 253.5 × 9.7 (H×V×D) |
| Pixel Pitch(mm) | 0.099 × 0.297 (H×V) |
| Treatment | Haze 25% , 3H |
| Luminance | 350 cd/m² (Typ.) |
| Contrast Ratio | 1000 : 1 (Typ.) (TM) |
| Viewing Angle | 85/85/85/85 (CR≥10) Left / Right/UP /Down |
| Response time | 30 (Typ.)(Tr/Td) ms |
| Display Mode | ADS , Normally black , Transmissive |
| Color Depth | 16.7M , 72% NTSC |
| Backlight | WLED , 50K hours , with LED Driver |
| Net Weight | 930g |
| Touchscreen | without |
| Signal Type/interface Type | LVDS (1 ch, 8-bit) , 20 pins |
| Voltage Supply | +3.3 V |
| Max. Ratings |
Storage Temp.: -20 ~ +70 (°C) Operating Temp.: -20 ~ +70 (°C) |
| Package |
BOE Original package; 14 pcs/box; size : 510(L) x 399(W) x 324(H)mm |
