| Manufacturer | BOE |
| Model Name | EV133FHM-N40 |
| Screen Size | 13.3 inch |
| Pixel Number | 1920(RGB)×1080 , FHD |

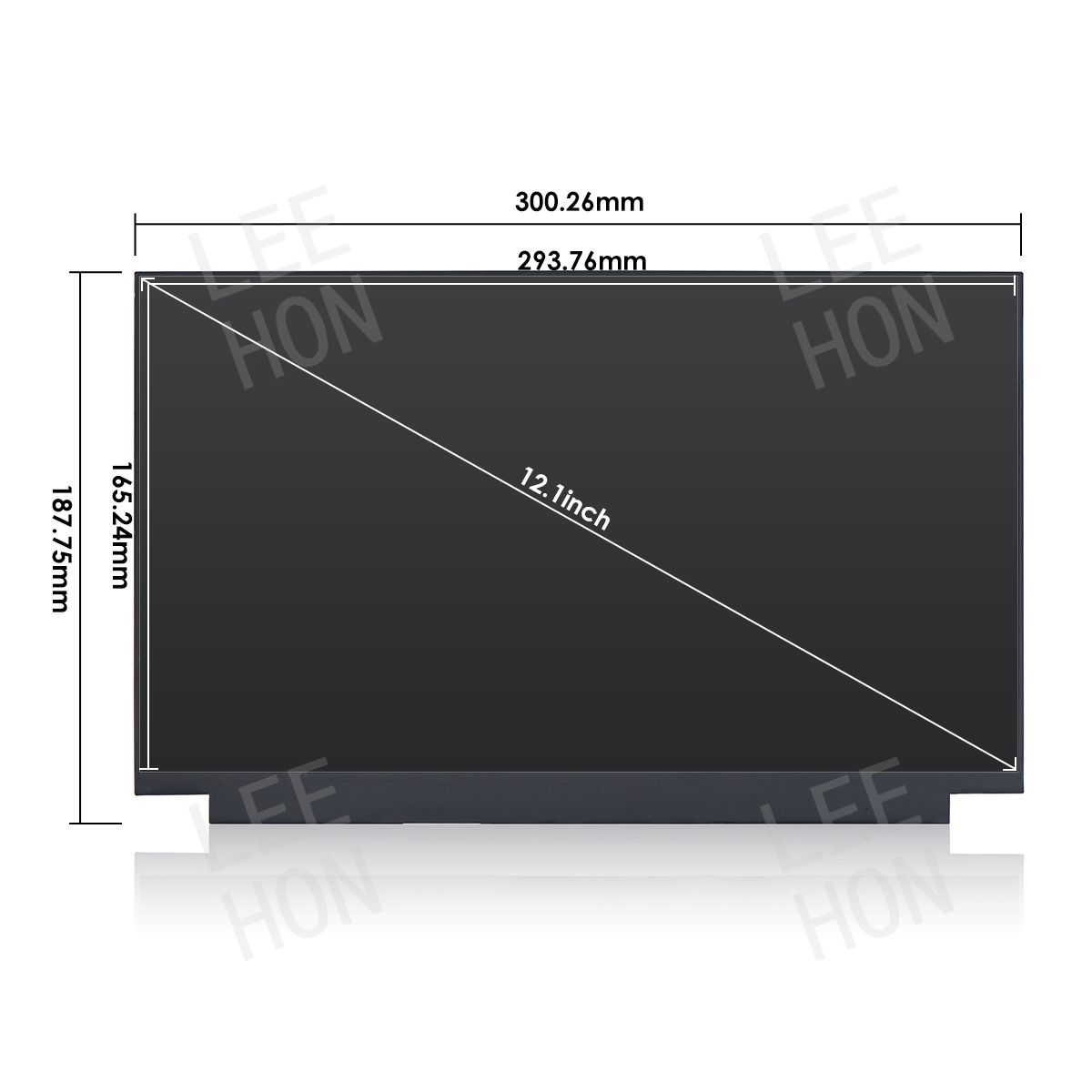

| Active Area(mm) | 293.76 x 165.24 (H×V) |
| Outline(mm） | 300.56 x 188.25 x 2.4 (H×V×D) |
| Pixel Pitch(mm) | 153 x 153 (H×V) |
| Treatment | Fine AG |
| Luminance | 300 cd/m² (Typ.) |
| Contrast Ratio | 800 : 1 (Typ.) (TM) |
| Viewing Angle | 85/85/85/85(CR≥10) Left / Right/UP /Down |
| Response time | 30 (Typ.)(Tr/Td) ms |
| Display Mode | ADS , Normally black , Transmissive |
| Color Depth | 16.7M , 72% NTSC |
| Backlight | WLED , 15K hours , with LED Driver |
| Net Weight | 215g |
| Touchscreen | without |
| Signal Type/interface Type | eDP (2 Lanes) , eDP1.2 , HBR1 (2.7G/lane) , 30 pins |
| Voltage Supply | +3.3 V |
| Max. Ratings |
Storage Temp.: -20 ~ +60 (°C) Operating Temp.: 0 ~ +50 (°C) |
| Package |
BOE Original package; 42 pcs/box; weight : 10.7Kgs; size : 480(L) x 350(W) x 285(H)mm |
