| Manufacturer | BOE |
| Model Name | PV121X0M-N10 |
| Screen Size | 12.1 INCH |
| Pixel Number | 1024(RGB)×768 , XGA |

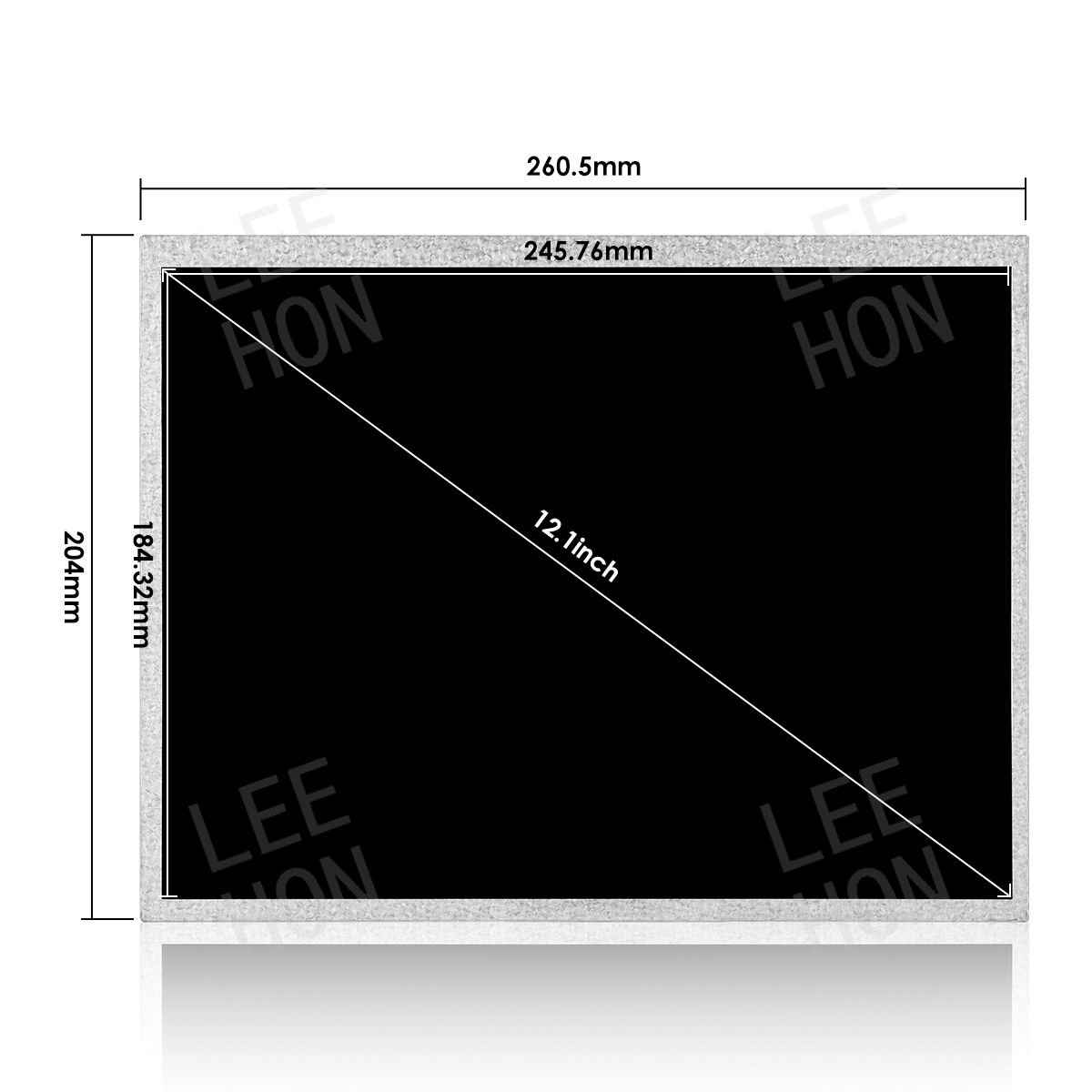

| Active Area(mm) | 245.76 x 184.32 (H×V) |
| Outline(mm） | 260.5 x 204 x 8.7 (H×V×D) |
| Pixel Pitch(mm) | 0.08 x 0.24 (H×V) |
|
Arrangement
|
RGB Vertical stripe
|
| Luminance | 500 cd/m² (Typ.) |
| Contrast Ratio | 1200 : 1 (Typ.) (TM) |
| Viewing Angle | 86/86/86/86 (CR≥10) Left / Right/UP /Down |
| Response time | 30 (Typ.)(Tr/Td) ms |
| Display Mode | ADS , Normally black , Transmissive |
| Color Depth | 16.7M , 72% NTSC |
| Backlight | WLED , 50K hours , with LED Driver |
| Net Weight | TBD |
| Touchscreen | without |
| Signal Type/interface Type | LVDS (1 ch, 8-bit) , 20 pins |
| Voltage Supply | +3.3 V |
| Max. Ratings |
Storage Temp.: -30 ~ +80 (°C) Operating Temp.: -20 ~ +70 (°C) |
| Package |
BOE Original package; 18 pcs/ctn; size : 607mm(W) x 507mm(D) x 240mm(H) |
