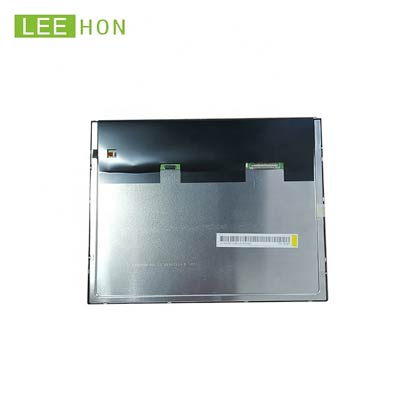

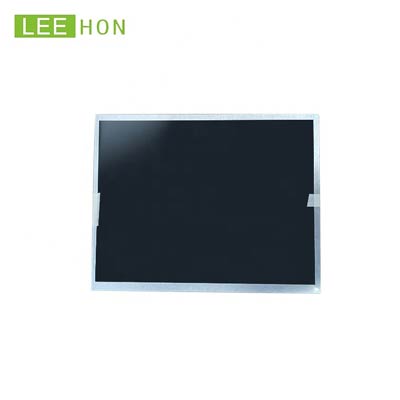

EV121X0M-N10

Your location: Home > Products > BOE > 12.1" >
  • Module No:EV121X0M-N10
  • Brand:BOE
  • Size:12.1 inch
  • Resolution:1024x768
  • Brightness:500 cd/m2
  • Viewing angle:88/88/88/88
  • Interface:LVDS
  • CR:1200:1
  • Operating Temp.: -20 ~ 70 °C
  • Parameters
  • Description

  • Manufacturer BOE
    Model Name EV121X0M-N10
    Screen Size 12.1
    Pixel Number 1024X768
    Active Area(mm) 245.76x184.32(HxV)
    Outline(mm) 260.5(W)x204(V)x8.7(D)mm
    Bezel Area(mm) 269.12 x173(HxV)
    Luminance 500 cd/m² (Typ.)
    Contrast Ratio 1200 : 1 (Typ.) (TM)
    Viewing Angle 88/88/88/88(CR≥10) Left / Right / Up / Down
    Response 25 (Typ.)(Tr+Td) ms
    Work Mode Normally black, Transmissive
    Color Depth 16.7M   72% (NTSC)
    Backlight 50K hours,With Driver
    Net Weight 450g
    operating frequency 60Hz
    Touchscreen Without, RTP+CTP for options
    Signal Type/interface Type LVDS(1 ch, 8 bit) , 20 pins,connector
    Voltage Supply 3.3V (Typ.)
    Temperature Storage Temp.: -20 ~ 70 °C
    Operating Temp.: -30 ~ 80 °C
    Package As request
    BOE
  • BOE 12.1 inch IPS Panel EV121X0M-N10 with resolution 1024x768 briughtness 500nits ,high contrast 1200:1 , long lifetime 50,000 hours and  good color depth 16.7M .
    Matched Resistive touch and Capacitive touch available.Also we have matched HDMI driver board and LVDS cables.

    BOE 12.1 inch 1024*768 EV121X0M-N10 IPS display tft lcd panel for Industry.


    Hangzhou LEEHON Technology is one of the main agents of AUO/BOE / Kyocera/ Innolux TFT- LCD module in China mainland, founded in 2009, the products vary from 2.5 to 43 inches, which include GD (Industrial grade), AV (car class), PID (General Application) and other related products etc.,superior quality and competitive price, our products are sold very well in North&South America, Western Europe and Southeast Asia.
    We can supply total set of display solution:
    TFT LCD screen + touch screen + controller board + cables + open frame.
    stock for sale
    long-time supply
    no MOQ
    in fulll range
