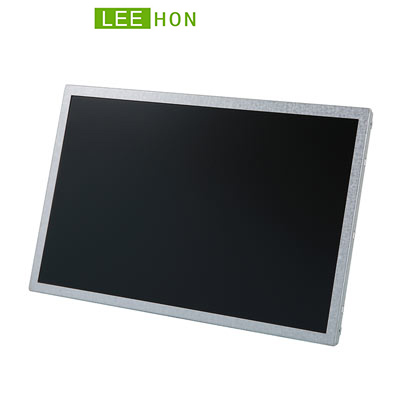

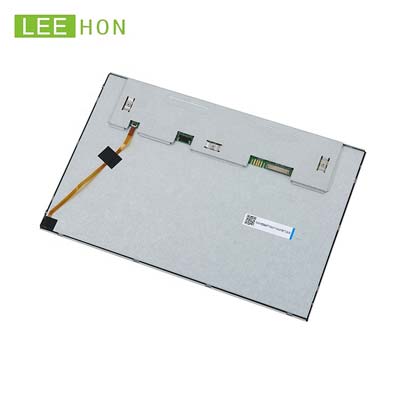

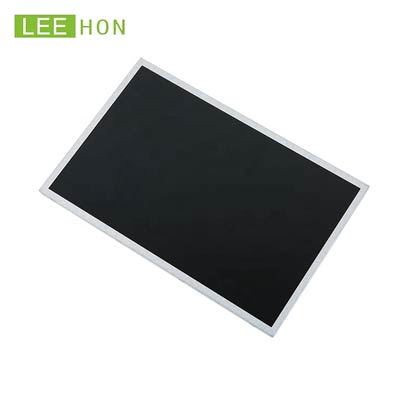

| Manufacturer 19 | BOE |
| Model Name | GV101WXM-N81 |
| Screen Size | 10.1 inch |
| Pixel Number | 1280*800 |
| Active Area(mm) | 216.96*135.60mm (H×V) |
| Bezel Area(mm) | 216.96(H)×135.6(V) mm |
| Luminance | 300 cd/m² (Typ.) |
| Contrast Ratio | 800: 1 (Typ.) (TM) |
| Viewing Angle | 85/85/85/85(CR≥10) Left / Right/UP /Down |
| Response | 30 (Typ.)(Tr/Td) ms |
| Work Mode | TN, Normally black, Transmissive |
| Color Depth | 16.7M , 48% NTSC |
| Backlight | WLED,15K hours,without LED Driver |
| Net Weight | 155g |
| Touchscreen | without |
| Signal Type/interface Type | eDP (1 Lane),eDP1.2 , HBR1 (2.7G/lane),30 pins |
| Max. Ratings |
Storage Temp.: -20 ~ 60 °C Operating Temp.: -20 ~60 °C |
| Package | BOE original package |
