EV101WXM-N10

Your location: Home > Products > BOE > 10.1" >
  • Module No:EV101WXM-N10
  • Brand:BOE
  • Size:10.1 inch
  • Resolution:1280(RGB)×800 , WXGA
  • Brightness:400 cd/m²
  • Viewing angle:85/85/85/85 (Typ.)
  • Interface:LVDS (1 ch, 8-bit) , 40 pins
  • CR:900 : 1
  • Operating Temp.: -20 ~ +70 (°C)
  • Parameters
  • Description
  • Manufacturer BOE
    Model Name EV101WXM-N10
    Screen Size 10.1 inch
    Pixel Number 1280(RGB)×800 , WXGA

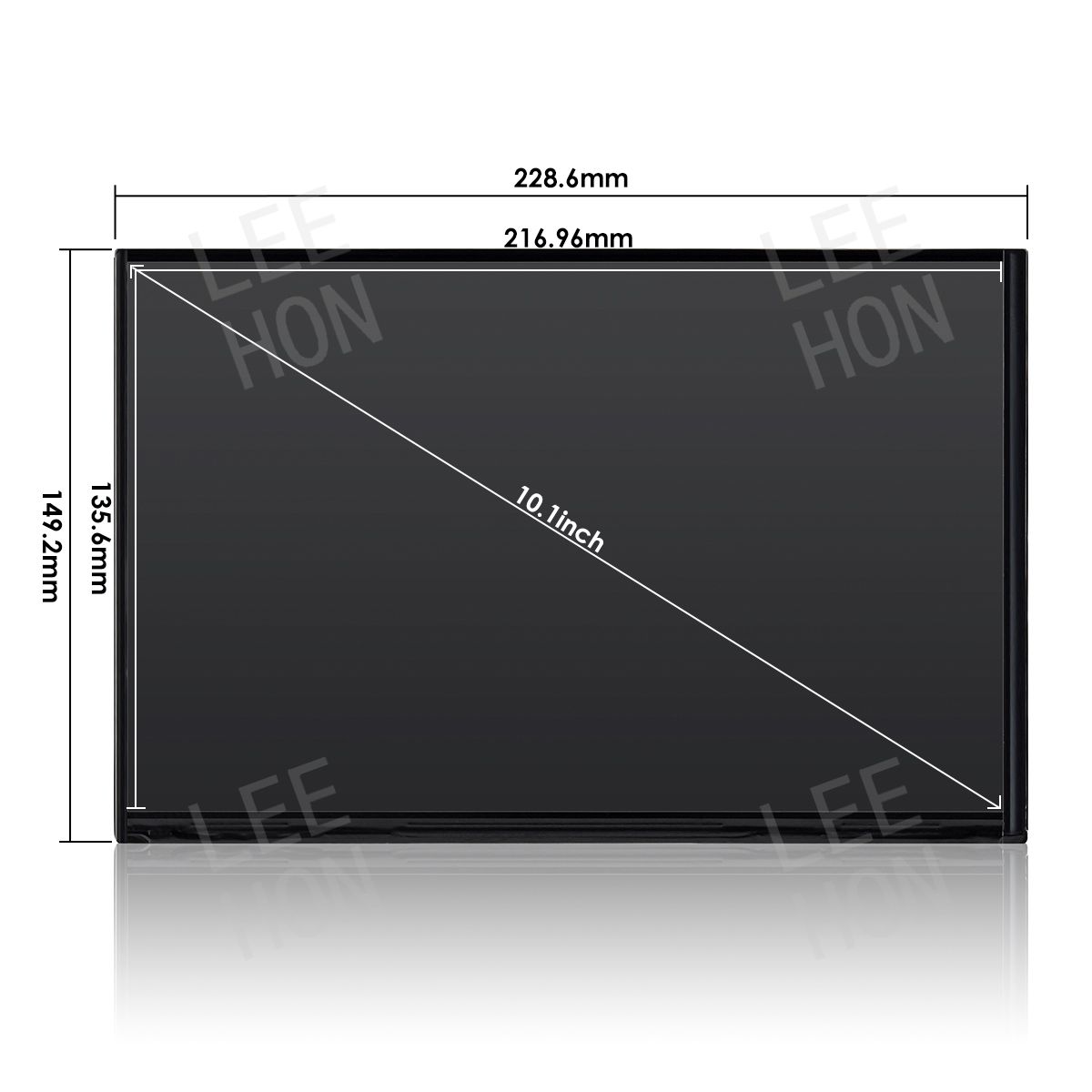

    Active Area(mm) 216.96(H) x 135.6(V) (H×V)
    Outline(mm) 228.6(H) x 149.2(V) (H×V×D)
    Bezel Area(mm) 216.96 × 135.6  (H×V)
    Treatment Haze
    Luminance 350 cd/m² (Typ.)
    Contrast Ratio 900 : 1 (Typ.) (TM)
    Viewing Angle 85/85/85/85 (CR≥10)
    Left/Right/UP/Down
    Response 30 (Typ.)(Tr+Td) ms
    Work Mode ADS , Normally black , Transmissive
    Color Depth 16.2M , 50% NTSC
    Backlight WLED , 30K hours , with LED Driver
    Net Weight 195g (Typ.)
    Touchscreen without
    Signal Type/interface Type LVDS (1 ch, 8-bit) , 40 pins
    Voltage Supply +3.3 V (Typ./Max.)
    Max. Ratings Storage Temp.: -20 ~ +70 (°C)
    Operating Temp.: -30 ~ +70 (°C)
    Package BOE Original package;
    40 pcs/box;
    size : 500(W) x 400(D) x 300(H) mm
    EV101WXM-N10
    EV101WXM-N10
    EV101WXM-N10
    EV101WXM-N10
    EV101WXM-N10
    EV101WXM-N10

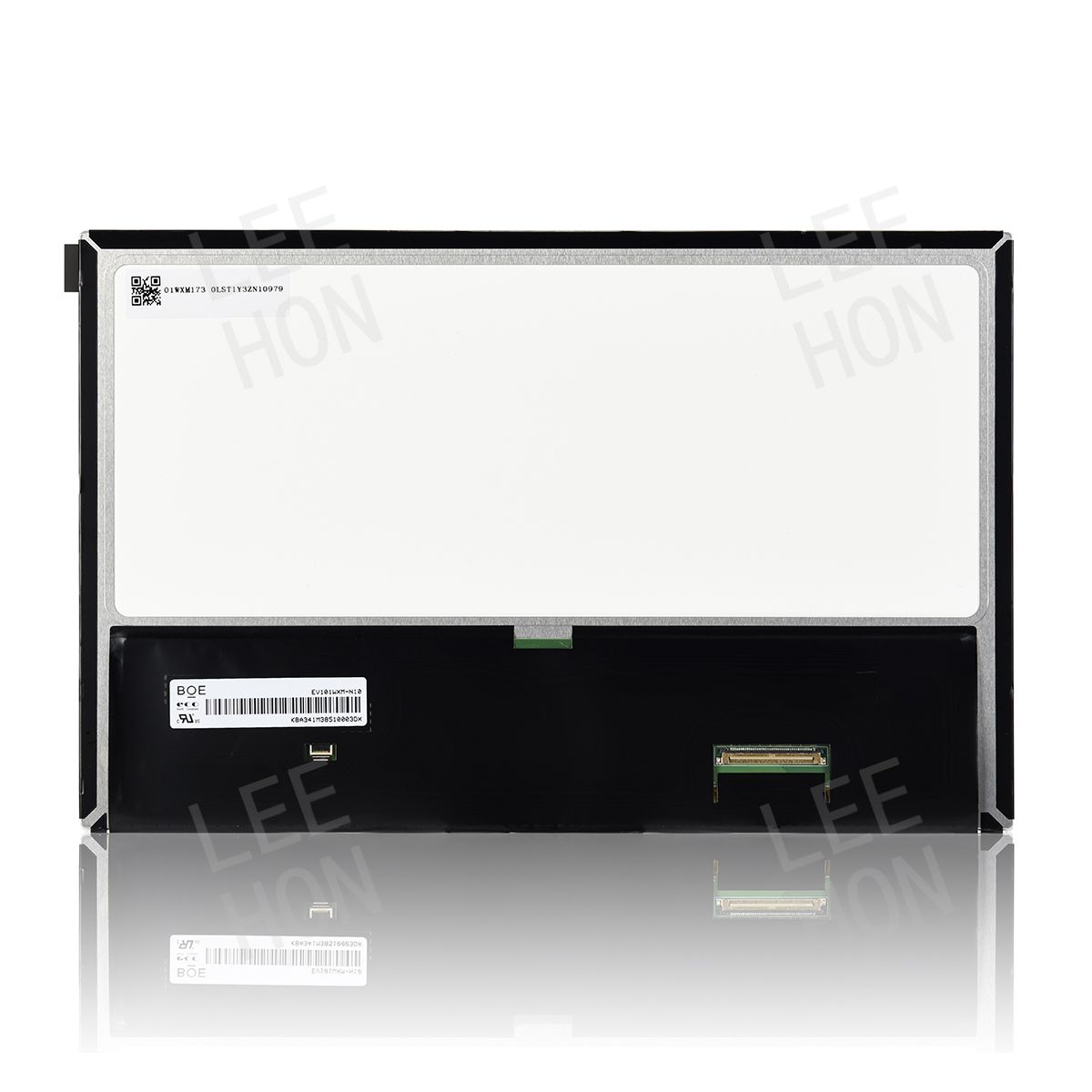

  • BOE 10.1 inch tft lcd ips panel EV101WXM-N10 with 1280(RGB)x800 WXGA resolution, brightness 400 cd/m². This lcd display's working temperature is -20 ~ +70 (°C) and it's storage temperature is -30 ~ +70 (°C). Based on it's white LED backlight. This model is recommended for industrial use and medical imaging.

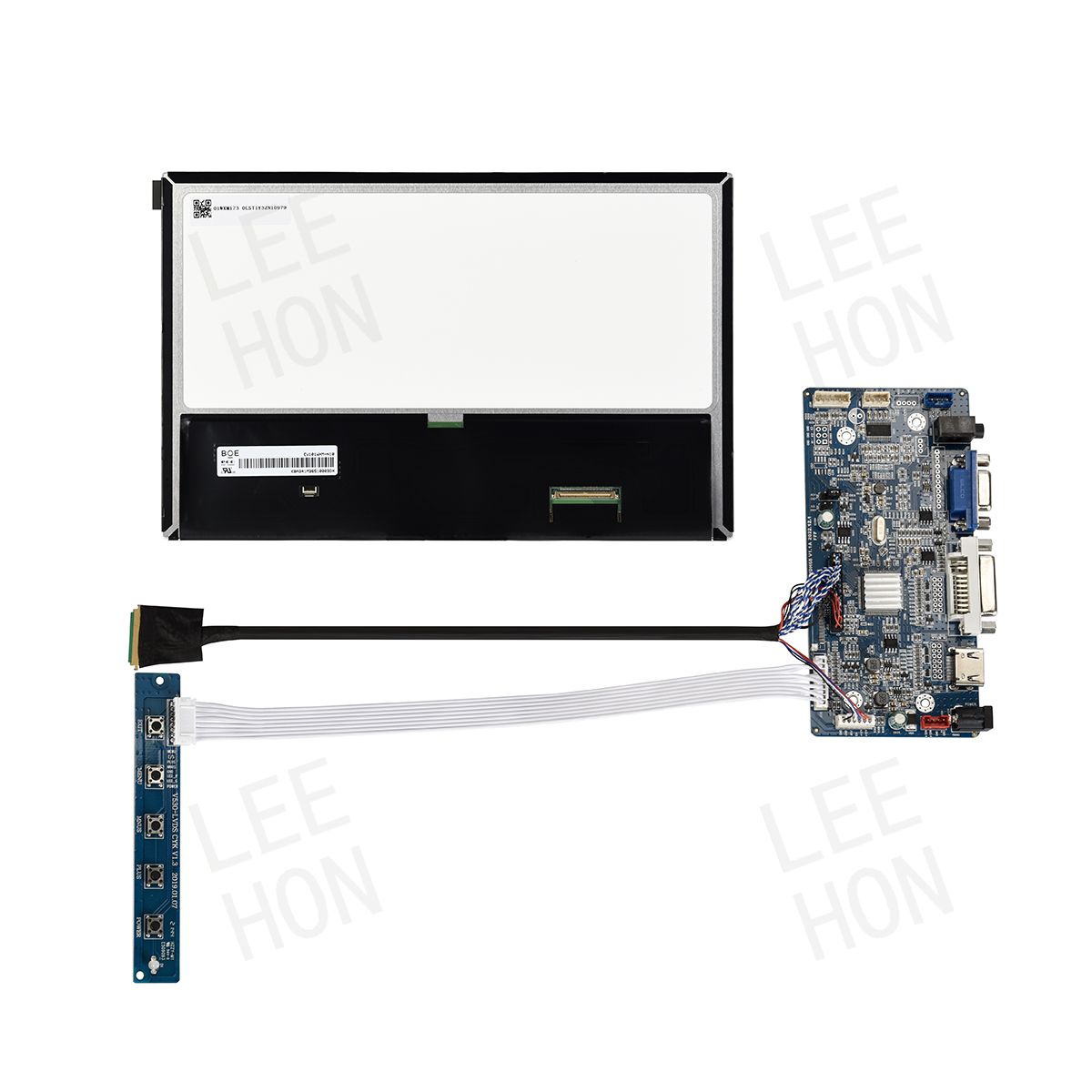

    Matched resistive touch and capacitive touch available. Also we have matched HDMI driver board and LVDS cables.
    Industrial 10.1 Inch 1280*800 WXGA LCD Panel Original BOE TFT LCD IPS Display EV101WXM-N10 with 400nits and 40pins LVDS cables.


    boe
    Hangzhou LEEHON Technology is one of the main agents of AUO/BOE / Kyocera/ Innolux TFT- LCD module in China mainland, founded in 2009, the products vary from 2.5 to 43 inches, which include GD (Industrial grade), AV (car class), PID (General Application) and other related products etc.,superior quality and competitive price, our products are sold very well in North&South America, Western Europe and Southeast Asia.
    We can supply total set of display solution:
    TFT LCD screen + touch screen + controller board + cables + open frame.
    stock for sale
    long-time supply
    no MOQ
    in fulll range
