EV101WXM-N81

Your location： Home > Products > BOE > 10.1" >

Module No：EV101WXM-N81
Brand：BOE
Size：10.1 inch
Resolution：1280*800
Brightness：500 cd/m²
Viewing angle：85/85/85/85
Interface：LVDS (1 ch, 8-bit) ,20 pins
CR：900:1
Operating Temp.: -20~70(℃）

Parameters
Description

Manufacturer	BOE
Model Name	EV101WXM-N81
Screen Size	10.1 inch
Pixel Number	1280(H)*800(V)
Active Area(mm)	216.96 (H) * 135.6(V)
Outline(mm)	233.2152.910.4
Bezel Area(mm)	216.96*135.6
Luminance	500 cd/m²
Contrast Ratio	900:1
Viewing Angle	85/85/85/85
Response	40 ms
Work Mode	Normally Black
Color Depth	16.2M , 52% NTSC
Backlight	WLED , 50k hours,without LED Driver
Net Weight	505g
Touchscreen	without
interface Type	LVDS (1 ch, 8-bit) ,20 pins
Max. Ratings	Storage Temp.: -30 ~ 80 °C
	Operating Temp.: -20 ~70 °C
Package	New and Original package

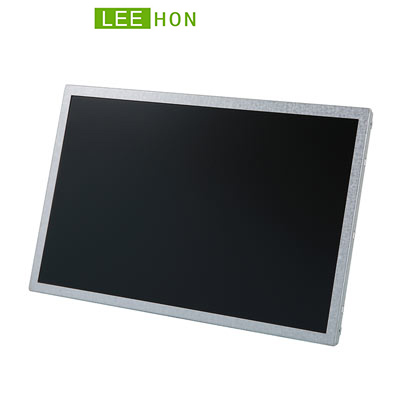

BOE 10.1 inch tft lcd panel EV101WXM-N81 with 1280*800 resolution and brightness 500 cd/m².This lcd screen has good view angel and work temperature very suitable for Medical and industrial applications.
Matched resistive touch and capacitive touch available for your options. Support one unit for sample approval.

Hangzhou LEEHON Technology is one of the main agents of AUO/BOE / Kyocera/ Innolux TFT- LCD module in China mainland, founded in 2009, the products vary from 2.5 to 43 inches, which include GD (Industrial grade), AV (car class), PID (General Application) and other related products etc.,superior quality and competitive price, our products are sold very well in North&South America, Western Europe and Southeast Asia.

We can supply total set of display solution:

TFT LCD screen + touch screen + controller board + cables + open frame.

stock for sale

long-time supply

no MOQ

in fulll range

Customization solutions
