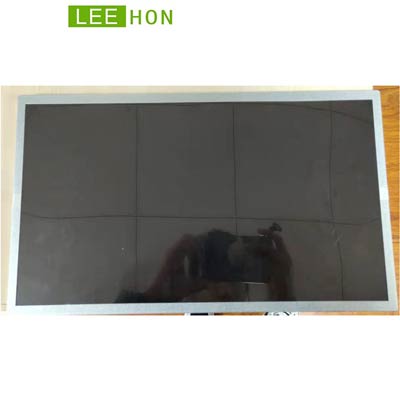

TM185VDSG06

Your location： Home
  • Products
  • TIANMA
  • 18.5
    • Module No：TM185VDSG06
    • Brand：TIANMA
    • Size：18.5 inch
    • Resolution：1920(RGB)×1080 , FHD
    • Brightness：400 cd/m²
    • Viewing angle：88/88/88/88 (Typ.)
    • Interface：eDP (2 Lanes) , 40 pins
    • CR：1000:1
    • Operating Temp.: -20 ~ +70 (°C)
    • Parameters
    • Description
    • Manufacturer  TIANMA
      Model Name TM185VDSG06
      Screen Size 18.5 Inch
      Pixel Number 1920(RGB)×1080 , FHD
      Active Area(mm) 408.96 × 230.04 (H×V)
      Outline(mm） 430.4 × 254.6 × 13.5 (H×V×D)
      Pixel Pitch(mm) 0.213 ×0.213 (H×V)
      Treatment Anti-glare
      Luminance 400 cd/m² (Typ.)
      Contrast Ratio 1000 : 1 (Typ.) (TM)
      Viewing Angle 88/88/88/88 (CR≥10) Left / Right/UP /Down
      Response time 25 (Typ.)(Tr/Td) ms
      Display Mode SFT , Normally black
      Support color 16.7M , 72% NTSC
      Backlight WLED , 50K hours , with LED Driver
      Net Weight 1.55Kgs
      Touchscreen without
      Signal Type/interface Type eDP (2 Lanes) , 40 pins
      Voltage Supply +5.0 V
      Max. Ratings Storage Temp.: -30 ~ +80 (°C)
      Operating Temp.: -20 ~ +70 (°C)
      Package Tianma Original package;
      5 pcs/ctn;
      weight : 9.695Kgs;
      size : 550(W) x 408(H) x 451(D)mm

    • Tianma 18.5 inch tft lcd ips panel TM185VDSG06 with 1920(RGB)x1080 Full HD resolution, brightness 400 cd/m². This lcd display's working temperature is -20 ~ +70 (°C) and it's storage temperature is -30 ~ +80 (°C). Based on it's white LED backlight. This model is recommended for industrial use.
      Matched resistive touch and capacitive touch available. Also we have matched HDMI driver board and LVDS cables.
      Industrial 18.5 Inch 1920*1080 Full HD LCD Panel Original TIANMA TFT IPS Display TM185VDSG06 with Full view angle, 400nits and eDP 40 pins.
