| Manufacturer | TIANMA |
| Model Name | P1560FHF1MB00 |
| Screen Size | 15.6 inch |
| Pixel Number | 1920(RGB)×1080 , FHD |
| Active Area(mm) | 344.16 x 193.59 (H×V) |
| Outline(mm） | 363.8 x 215.9 (H×V) |
| Pixel Pitch(mm) | 0.17925 x 0.17925 (H×V) |
| Treatment | Hard coating (3H) |
| Luminance | 400 cd/m² (Typ.) |
| Contrast Ratio | 1000 : 1 (Typ.) (TM) |
| Viewing Angle | 88/88/88/88 (CR≥10) Left / Right/UP /Down |
| Response time | 12/13 (Typ.)(Tr/Td) ms |
| Display Mode | SFT , Normally black , Transmissive |
| Color Depth | 16.7M |
| Backlight | WLED , with LED Driver |
| Net Weight | TBD |
| Touchscreen | without |
| Signal Type/interface Type | LVDS (2 ch, 8-bit) |
| Voltage Supply | +3.3 V |
| Max. Ratings | Storage Temp.: -30 ~ +80 (°C) Operating Temp.: -20 ~ +70 (°C) |
| Package | TIANMA Original package |

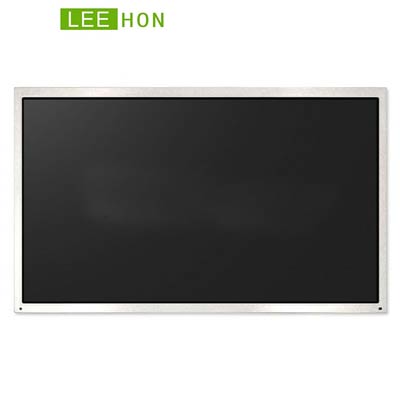

TIANMA 15.6 inch tft lcd ips panel P156FHF1MB00 with 1920(RGB)×1080 FHD resolution, brightness 400 cd/m². This lcd display's working temperature is -20 ~ +70 (°C) and it's storage temperature is -30 ~ +80 (°C). Based on it's white LED backlight. This model is recommended for industrial use.
Matched Resistive touch and Capacitive touch available. Also we have matched HDMI driver board and LVDS cables.
Industrial 15.6 Inch 1920x1080 FHD LCD Screen Original TIANMA TFT LCD Panel IPS Display P156FHF1MB00 with 400nits, LVDS cables and Controller board.
Hangzhou LEEHON Technology is one of the main agents of AUO/BOE / Kyocera/ Innolux TFT- LCD module in China mainland, founded in 2009, the products vary from 2.5 to 43 inches, which include GD (Industrial grade), AV (car class), PID (General Application) and other related products etc.,superior quality and competitive price, our products are sold very well in North&South America, Western Europe and Southeast Asia.
We can supply total set of display solution:
TFT LCD screen + touch screen + controller board + cables + open frame.
stock for sale
long-time supply
no MOQ
in fulll range
