TM150XDHG01-02

Your location: Home > Products > TIANMA > 15.0 >
  • Module No:TM150XDHG01-02
  • Brand:
  • Size:15 inch
  • Resolution:1600(RGB)×1200 , UXGA
  • Brightness:1000 cd/m²
  • Viewing angle:80/80/80/80 (Typ.)
  • Interface:LVDS (2 ch, 8-bit) , 30 pins
  • CR:1000:1
  • Operating Temp.: -30 ~ +70 (°C)
  • Parameters
  • Description
  • Manufacturer  TIANMA
    Model Name TM150XDHG01-02
    Screen Size 15 inch
    Pixel Number 1600(RGB)×1200, UXGA
    Active Area(mm) 304.8 x 228.6 (H×V)
    Outline(mm) 318.7 x 242.5 x 6.6 (H×V×D)
    Pixel pitch(mm) 0.1905 x 0.1905 (H×V)
    Treatment
    Anti-Glare
    Luminance 1000 cd/m² (Typ.)
    Contrast Ratio 1000 : 1 (Typ.) (TM)
    Viewing Angle 80/80/80/80(CR≥10) Left / Right/UP /Down
    Response 20 (Typ.)(Tr/Td) ms
    Work Mode TN, Normally white, Transmissive
    Color Depth 16.7M , 50% NTSC
    Backlight WLED , 30K hours, with LED Driver
    Net Weight 620g
    Touchscreen without
    Signal Type/interface Type LVDS (2 ch, 8-bit) , 30 pins
    Voltage Supply 3.3V
    Max. Ratings Storage Temp.: -40 ~ +80 (°C)
    Operating Temp.: -30 ~ +70 (°C)
    Package TIANMA Original Package;
    15 pcs/ctn;
    weight : 12.753Kgs;
    size : 520(L)mm x 435(W)mm x 330(H)mm

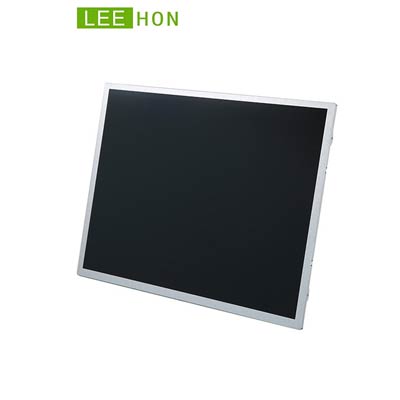

  • TIANMA 15 inch tft lcd panel TM150XDHG01-02 with 1600(RGB)×1200 UXGA resolution, brightness 1000 cd/m². This lcd display is working temperature is -30 ~ +70 (°C) and its storage temperature is  -40 ~ +80 (°C). Based on its white LED backlight. This model is recommended for industrial use and Outdoor Highlight.
    Matched Resistive touch and Capacitive touch available.also we have matched HDMI driver board and LVDS cables.
    High Brightness 15 inch 1600x1200 UXGA TIANMA TFT LCD Panel LVDS Display For Outdoor Highlight TM150XDHG01-02 with 1000nits Sunlight Readable and Controller Board.



    Hangzhou LEEHON Technology is one of the main agents of AUO/BOE / Kyocera/ Innolux TFT- LCD module in China mainland, founded in 2009, the products vary from 2.5 to 43 inches, which include GD (Industrial grade), AV (car class), PID (General Application) and other related products etc.,superior quality and competitive price, our products are sold very well in North&South America, Western Europe and Southeast Asia.
    We can supply total set of display solution:
    TFT LCD screen + touch screen + controller board + cables + open frame.
    stock for sale
    long-time supply
    no MOQ
    in fulll range
