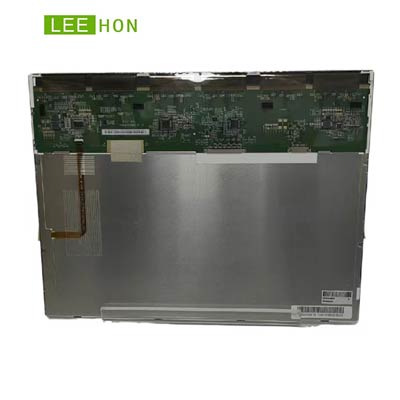

TM150XDHG01

Your location： Home
  • Products
  • TIANMA
  • 15.0
    • Module No：TM150XDHG01
    • Brand：TIANMA
    • Size：15 inch
    • Resolution：1600(RGB)×1200 , UXGA
    • Brightness：1000 cd/m²
    • Viewing angle：80/80/80/80 (Typ.)
    • Interface：LVDS (2 ch, 6-bit) , 30 pins
    • CR：1000:1
    • Operating Temp.: -30 ~ +70 (°C)
    • Parameters
    • Description
    • Manufacturer  TIANMA
      Model Name TM150XDHG01
      Screen Size 15 inch
      Pixel Number 1600(RGB)×1200 , UXGA
      Active Area(mm) 304.8 x 228.6 (H×V)
      Outline(mm） 318.7 x 242.65 x 6.5 (H×V×D)
      Pixel pitch(mm)
      		 0.1905 x 0.1905 (H×V)
      Treatment
      Anti-Glare
      Luminance 1000 cd/m² (Typ.)
      Contrast Ratio 1000 : 1 (Typ.) (TM)
      Viewing Angle 80/80/80/80(CR≥10) Left / Right/UP /Down
      Response 20 (Typ.)(Tr/Td) ms
      Work Mode TN , Normally white, Transmissive
      Color Depth 262K , 50% NTSC
      Backlight WLED , 30K hours, with LED Driver
      Net Weight 620g
      Touchscreen without
      Signal Type/interface Type LVDS (2 ch, 6-bit) , 30 pins
      Voltage Supply 3.3V
      Max. Ratings Storage Temp.: -40 ~ +80 (°C)
      Operating Temp.: -30 ~ +70 (°C)
      Package TIANMA Original Package;
      15 pcs/ctn;
      weight : 12.753Kgs;
      size : 520(L)mm x 435(W)mm x 330(H)mm

    • TIANMA 15 inch tft lcd panel TM150XDHG01 with 1600(RGB)×1200 UXGA resolution , brightness 1000 cd/m². This lcd display is working temperature is -30 ~ +70 (°C) and its storage temperature is  -40 ~ +80 (°C). Based on its white LED backlight. This model is recommended for industrial use and Outdoor Highlight.
      Matched Resistive touch and Capacitive touch available.also we have matched HDMI driver board and LVDS cables.
      High Brightness A Grade 15 Inch 1600x1200 UXGA TIANMA TFT LCD Panel LVDS Display For Outdoor Highlight TM150XDHG01 With 1000cd/m2, Touchscreen And Controller Board.


      Hangzhou LEEHON Technology is one of the main agents of AUO/BOE / Kyocera/ Innolux TFT- LCD module in China mainland, founded in 2009, the products vary from 2.5 to 43 inches, which include GD (Industrial grade), AV (car class), PID (General Application) and other related products etc.,superior quality and competitive price, our products are sold very well in North&South America, Western Europe and Southeast Asia.
      We can supply total set of display solution:
      TFT LCD screen + touch screen + controller board + cables + open frame.
      stock for sale
      long-time supply
      no MOQ
      in fulll range
