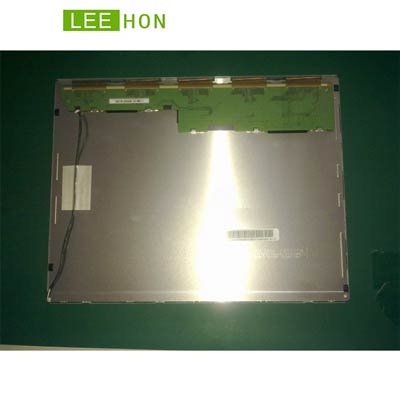

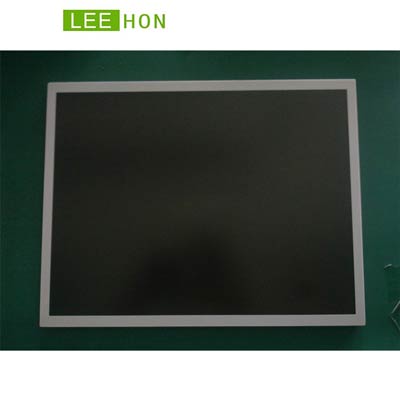

| Manufacturer | TIANMA |
| Model Name | TM150TDSG52 |
| Screen Size | 15 inch |
| Pixel Number | 1024(RGB)×768 , XGA |
| Active Area(mm) | 304.128 x 228.096 (H×V) |
| Outline(mm） | 326.5 x 253.5 x 11.8 (H×V×D) |
|
Pixel pitch(mm)
|
0.297 x 0.297 (H×V) |
| Treatment | Anti Glare |
| Luminance | 250 cd/m² (Typ.) |
| Contrast Ratio | 600 : 1 (Typ.) (TM) |
| Viewing Angle | 80/80/80/80(CR≥10) Left / Right/UP /Down |
| Response | 3/5 (Typ.)(Tr/Td) ms |
| Work Mode | TN , Normally white, Transmissive |
| Color Depth | 262K/16.7M , 60% NTSC |
| Backlight | WLED , 30K hours, with LED Driver |
| Net Weight | 1.00Kgs |
| Touchscreen | without |
| Signal Type/interface Type | LVDS (1 ch, 6/8-bit) , 20 pins |
| Voltage Supply | 3.3V |
| Max. Ratings |
Storage Temp.: -20 ~ +65 (°C) Operating Temp.: 0 ~ +65 (°C) |
| Package |
TIANMA original package; 14 pcs/ctn; weight : 14.6Kgs; size : 378(L)mm x 368(W)mm x 315.5(H)mm |
