P1210XGF1MA00

Your location： Home
  • Products
  • TIANMA
  • 12.1
    • Module No：P1210XGF1MA00
    • Brand：TIANMA
    • Size：12.1 inch
    • Resolution：1024(RGB)×768 , XGA
    • Brightness：1300 cd/m²
    • Viewing angle：88/88/88/88 (Typ.)
    • Interface：LVDS (1 ch, 6/8-bit) , 20 pins
    • CR：1000:1
    • Operating Temp.: -30 ~ +80 (°C)
    • Parameters
    • Description
    • Manufacturer  TIANMA
      Model Name P1210XGF1MA00
      Screen Size 12.1 inch
      Pixel Number 1024(RGB)×768 ,  XGA
      Active Area(mm)
      245.76 x 184.32 (H×V)
      Outline(mm）
      260.5 x 203 x 9.5 (H×V×D)
      Pixel Pitch(mm)
      0.240 (H) x 0.240 (V)
      Treatment AG
      Luminance 1300 cd/m² (Typ.)
      Contrast Ratio 1000 : 1 (Typ.) (TM)
      Viewing Angle 88/88/88/88 (Typ.)
      Response 25 (Typ.)(Tr/Td) ms
      Work Mode SFT , Normally black, Transmissive
      Color Depth 262K/16.7M , 72% NTSC
      Backlight WLED, 100K hours,without driver
      Net Weight 550g
      Touchscreen without
      Signal Type/interface Type LVDS (1 ch, 6/8-bit) , 20 pins
      Voltage Supply 3.3V
      Max. Ratings Storage Temp.: -40 ~ +90 (°C)
      Operating Temp.: -30 ~ +80 (°C)
      Package TIANMA Original Package

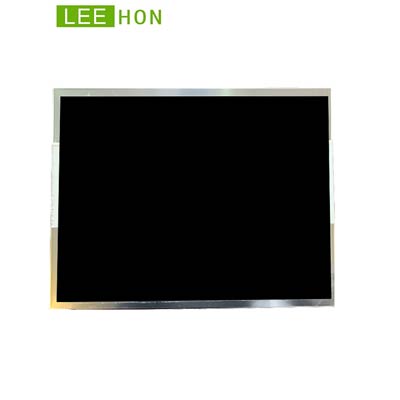

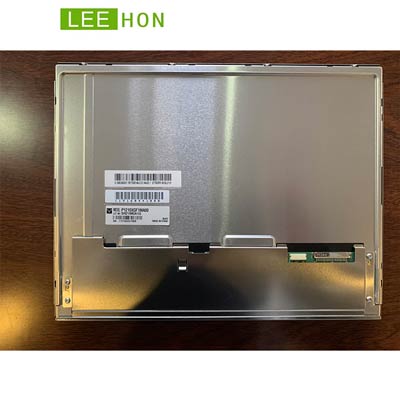

    • TIANMA 12.1 inch tft lcd panel P1210XGF1MA00 with 1024x768 XGA resolution , brightness 1300 cd/m². This lcd display is working temperature is -30 ~ +80 (°C) and its storage temperature is  -40 ~ +90 (°C). Based on its white LED backlight.This model is recommended for industrial use and outdoor highlight.
      Matched Resistive touch and Capacitive touch available.also we have matched HDMI driver board and LVDS cables.
      Sunlight Readable 12.1 inch 1024x768 XGA TIANMA IPS TFT LCD Panel P1210XGF1MA00 with 1300 nits, 20 pin LVDS and controller board.


      Hangzhou LEEHON Technology is one of the main agents of AUO/BOE / Kyocera/ Innolux TFT- LCD module in China mainland, founded in 2009, the products vary from 2.5 to 43 inches, which include GD (Industrial grade), AV (car class), PID (General Application) and other related products etc.,superior quality and competitive price, our products are sold very well in North&South America, Western Europe and Southeast Asia.
      We can supply total set of display solution:
      TFT LCD screen + touch screen + controller board + cables + open frame.
      stock for sale
      long-time supply
      no MOQ
      in fulll range
