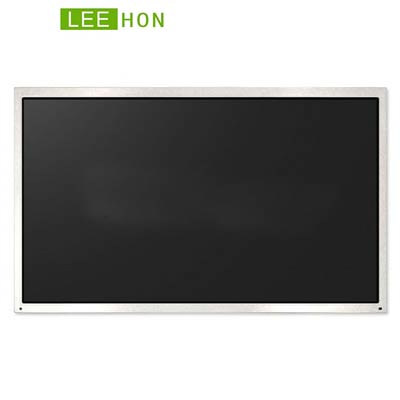

P1210SVF1MB00

Your location： Home
  • Products
  • TIANMA
  • 12.1
    • Module No：P1210SVF1MB00
    • Brand：TIANMA
    • Size：12.1 inch
    • Resolution：800(RGB)×600 , SVGA
    • Brightness：500 cd/m²
    • Viewing angle：88/88/88/88 (Typ.)
    • Interface：LVDS (1 ch, 6/8-bit) , 20 pins
    • CR：1000:1
    • Operating Temp.: -20 ~ +70 (°C)
    • Parameters
    • Description
    • Manufacturer  TIANMA
      Model Name P1210SVF1MB00
      Screen Size 12.1 inch
      Pixel Number 800(RGB)×600 , SVGA
      Active Area(mm) 246.0 x 1844.5 (H×V)
      Outline(mm） 279.0 x 209.0 x 9 (H×V×D)
      Pixel Pitch(mm) 0.3075 x 0.3075 (H×V)
      Treatment
      Anti Glare
      Luminance 500 cd/m² (Typ.)
      Contrast Ratio 1000 : 1 (Typ.) (TM)
      Viewing Angle 88/88/88/88 (CR≥10) Left / Right/UP /Down
      Response time 25 (Typ.)(Tr/Td) ms
      Display Mode SFT , Normally black , Transmissive
      Color Depth 262K/16.7M , 72% NTSC
      Backlight WLED , 50K hours , with LED Driver
      Net Weight 492g
      Touchscreen without
      Signal Type/interface Type LVDS (1 ch, 6/8-bit) , 20 pins
      Voltage Supply +3.3 V
      Max. Ratings Storage Temp.: -30 ~ +80 (°C)
      Operating Temp.: -20 ~ +70 (°C)
      Package TIIANMA Original package;
      weight : 14.48Kgs;
      size : 577(L) x 421(W) x 326(H) mm

    • TIANMA 12.1 inch tft lcd ips panel P1210SVF1MB00 with 800(RGB)×600 SVGA resolution, brightness 500 cd/m². This lcd display's working temperature is -20 ~ +70 (°C) and it's storage temperature is -30 ~ +80 (°C). Based on it's white LED backlight. This model is recommended for industrial use.
      Matched Resistive touch and Capacitive touch available. Also we have matched HDMI driver board and LVDS cables.
      Industrial 12.1 Inch 800x600 SVGA LCD Panel Original TIANMA TFT LCD Screen P1210SVF1MB00 With 500nits, 20 pins LVDS and Touchscreen.


      Hangzhou LEEHON Technology is one of the main agents of AUO/BOE / Kyocera/ Innolux TFT- LCD module in China mainland, founded in 2009, the products vary from 2.5 to 43 inches, which include GD (Industrial grade), AV (car class), PID (General Application) and other related products etc.,superior quality and competitive price, our products are sold very well in North&South America, Western Europe and Southeast Asia.
      We can supply total set of display solution:
      TFT LCD screen + touch screen + controller board + cables + open frame.
      stock for sale
      long-time supply
      no MOQ
      in fulll range
