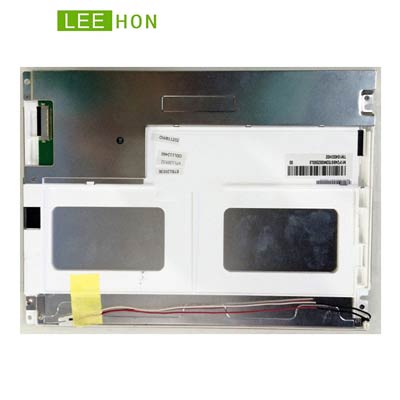

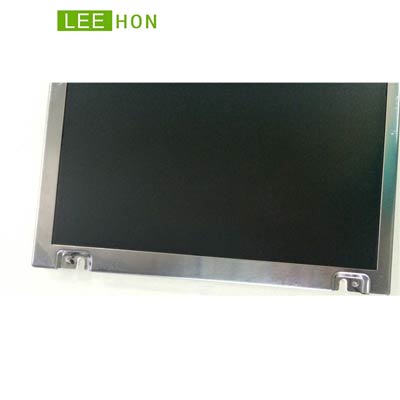

| Manufacturer | TIANMA |
| Model Name | TM104SDH02 |
| Screen Size | 10.4 inch |
| Pixel Number | 800(RGB)×600, SVGA |
| Active Area(mm) | 211.20 x 158.40 (H×V) |
| Outline(mm） | 243.00 x 179.40 x 8.50 (H×V×D) |
| Pixel Pitch(mm) | 00.264 x 0.264 (H×V) |
| Treatment |
Anti-Glare(3H)
|
| Luminance | 400 cd/m² (Typ.) |
| Contrast Ratio | 500 : 1 (Typ.) (TM) |
| Viewing Angle | 70/70/60/70(CR≥10) Left / Right/UP /Down |
| Response | 10/15 (Typ.)(Tr/Td) ms |
| Work Mode | TN , Normally white, Transmissive |
| Color Depth | 262K/16.7M , 50% NTSC |
| Backlight | WLED , 50K hours,without driver |
| Net Weight | 437g |
| Touchscreen | without |
| Signal Type/interface Type | LVDS (1 ch, 6/8-bit) , 20 pins |
| Voltage Supply | 3.3V |
| Max. Ratings |
Storage Temp.: -30 ~ +85 (°C) Operating Temp.: -30 ~ +80 (°C) |
| Package |
TIANMA original package; 20 pcs/ctn; weight : TBD; size : 530(L)mm x 350(W)mm x 250(H)mm |
