P1040XGF1MA00

Your location: Home > Products > TIANMA > 10.4 >
  • Module No:P1040XGF1MA00
  • Brand:TIANMA
  • Size:10.4 inch
  • Resolution:1024(RGB)×768 , XGA
  • Brightness:1300 cd/m²
  • Viewing angle:85/85/85/85 (Typ.)
  • Interface:LVDS (1 ch, 6/8-bit) , 20 pins
  • CR:1000:1
  • Operating Temp.: -30 ~ +80 (°C)
  • Parameters
  • Description
  • Manufacturer  TIANMA
    Model Name P1040XGF1MA00
    Screen Size 10.4 INCH
    Pixel Number 1024(RGB)×768 , XGA
    Active Area(mm) 210.432 x 157.824 (H×V)
    Outline(mm) 230.00 x 180.2 x 9.5 (H×V×D)
    Pixel pitch(mm)
    0.2055x0.2055 (H×V)
    Treatment
    Anti-Glare
    Luminance 1300 cd/m² (Typ.)
    Contrast Ratio 1000 : 1 (Typ.) (TM)
    Viewing Angle 85/85/85/85 (Typ.)
    Response 35/50 (Typ.)(Tr/Td) ms
    Work Mode SFT , Normally black, Transmissive
    Color Depth 262K/16.7M , 50% NTSC
    Backlight WLED, 100K hours,without driver
    Net Weight 430g
    Touchscreen without
    Signal Type/interface Type LVDS (1 ch, 6/8-bit) , 20 pins
    Voltage Supply 3.3V
    Max. Ratings Storage Temp.: -40 ~ +85 (°C)
    Operating Temp.: -30 ~ +8(°C)
    Package TIANMA Original package;
    18 pcs/ctn;
    weight : 12.64Kgs;
    size : 544(L)mm x 365(W) x 250(H)mm.

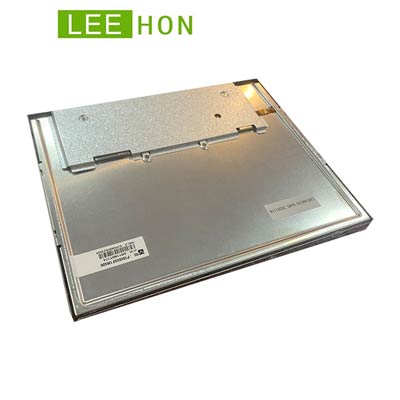

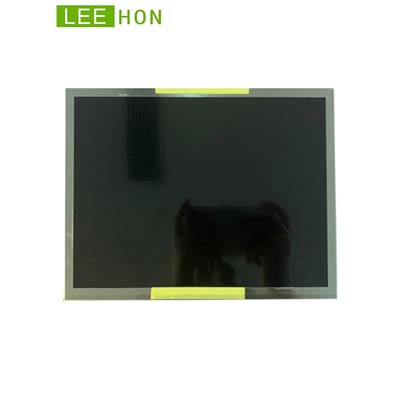

  • TIANMA 10.4 inch tft lcd panel P104XGF1MA00 with 1024x768 XGA resolution , brightness 1300 cd/m². This lcd display is working temperature is -30 ~ +80 (°C) and its storage temperature is  -40 ~ +85 (°C).Based on its white LED backlight.This model is recommended for industrial use and outdoor highlight.
    Matched Resistive touch and Capacitive touch available.also we have matched HDMI driver board and LVDS cables.
    High Brightness 10.4 inch 1024x768 XGA TIANMA IPS TFT LCD Panel P104XGF1MA00 with 1300 nits Sunlight Readable and 20 pin LVDS.



    Hangzhou LEEHON Technology is one of the main agents of AUO/BOE / Kyocera/ Innolux TFT- LCD module in China mainland, founded in 2009, the products vary from 2.5 to 43 inches, which include GD (Industrial grade), AV (car class), PID (General Application) and other related products etc.,superior quality and competitive price, our products are sold very well in North&South America, Western Europe and Southeast Asia.
    We can supply total set of display solution:
    TFT LCD screen + touch screen + controller board + cables + open frame.
    stock for sale
    long-time supply
    no MOQ
    in fulll range
