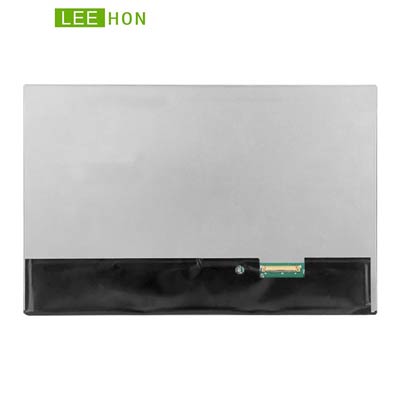

| Manufacturer | TIANMA |
| Model Name | TM101JDHG38 |
| Screen Size | 10.1 inch |
| Pixel Number | 1280(RGB)×800 , WXGA |
| Active Area(mm) | 216.96 x 135.60 (H×V) |
| Outline(mm） | 231.22 x 150.60 x 4.4 (H×V×D) |
| Pixel pitch (mm) | 0.1695 x 0.1695 (H×V) |
| Treatment | HC |
| Luminance | 400 cd/m² (Typ.) |
| Contrast Ratio | 800 : 1 (Typ.) (TM) |
| Viewing Angle | 85/85/85/85(CR≥10) Left / Right/UP /Down |
| Response | 25 (Typ.)(Tr/Td) ms |
| Work Mode | SFT , Normally black, Transmissive |
| Color Depth | 262K/16.7M , 50% NTSC |
| Backlight | WLED , 30K hours,with LED Driver |
| Net Weight | 276g |
| Touchscreen | without |
| Signal Type/interface Type | LVDS (1 ch, 6/8-bit) , 40 pins |
| Voltage Supply | 3.3V |
| Max. Ratings |
Storage Temp.: -30 ~ +80 (°C) Operating Temp.: -20 ~ +70 (°C) |
| Package |
TIANMA Original Package; 19 pcs/ctn; weight : 8.3Kgs; size : 544(L)mm x 365(W)mm x 250(H)mm |
