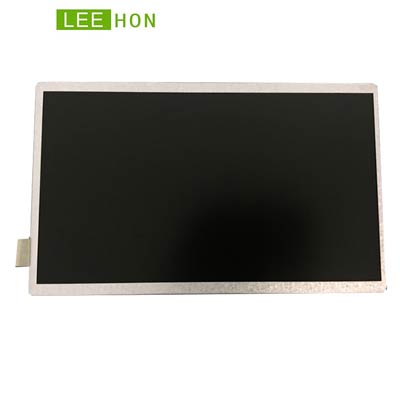

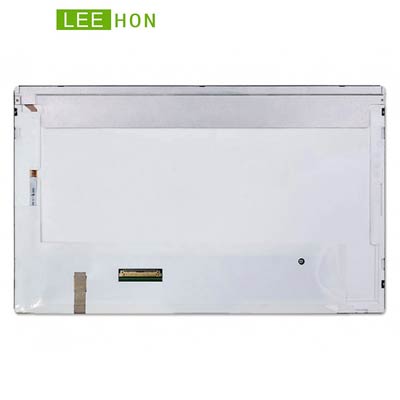

| Manufacturer | TIANMA |
| Model Name | TM101DDHG01-00 |
| Screen Size | 10.1 inch |
| Pixel Number | 1024(RGB)×600 , WSVGA |
| Active Area(mm) |
222.72 x 125.28 (H×V)
|
| Outline(mm） |
235.00 x 143.00 x 4.9 (H×V×D)
|
|
Pixel pitch(mm)
|
0.2175x0.2088 (H×V)
|
| Treatment |
AG,HC(3H)
|
| Luminance | 450 cd/m² (Typ.) |
| Contrast Ratio | 800 : 1 (Typ.) (TM) |
| Viewing Angle | 80/80/75/80 (Typ.) |
| Response | 7/9 (Typ.)(Tr/Td) ms |
| Work Mode | TN, Normally white, Transmissive |
| Color Depth | 262K/16.7M , 47% NTSC |
| Backlight | WLED , 30K hours,with LED Driver |
| Net Weight | 202g |
| Touchscreen | without |
| Signal Type/interface Type | LVDS (1 ch, 6/8-bit) , 40 pins |
| Voltage Supply | 3.3V |
| Max. Ratings |
Storage Temp.: -30 ~ +80 (°C) Operating Temp.: -20 ~ +70 (°C) |
| Package | TIANMA original package |
