| Manufacturer | TIANMA |

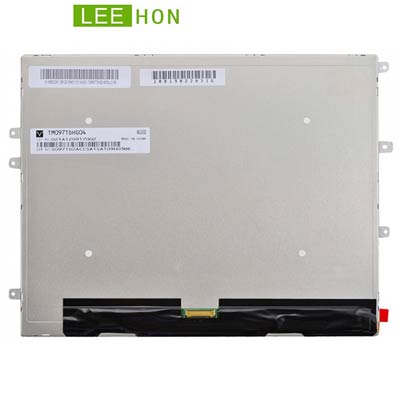

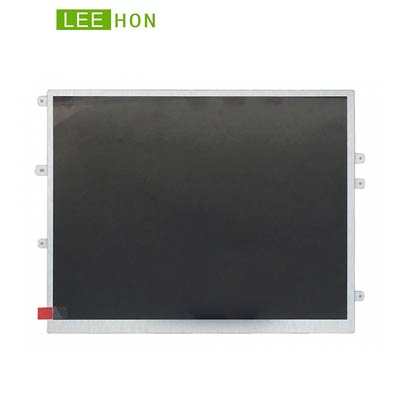

| Model Name | TM097TDHG04-00 |
| Screen Size | 9.7 inch |
| Pixel Number | 1024(RGB)×768 , XGA |
| Active Area(mm) | 196.61 x 147.46 (H×V) |
| Outline(mm） | 210.2 x 166.30 x 3.28 (H×V×D) |
|
Pixel Pitch(mm)
|
0.192 (H) x 0.192 (V)
|
| Treatment |
Clear
|
| Luminance | 350 cd/m² (Typ.) |
| Contrast Ratio | 500 : 1 (Typ.) (TM) |
| Viewing Angle | 70/70/60/70(CR≥10) Left / Right/UP /Down |
| Response | 20/25(Typ.)(Tr/Td) ms |
| Work Mode | TN, Normally white, Transmissive |
| Color Depth | 262K , 50% NTSC |
| Backlight | WLED, 30K hours,without driver |
| Net Weight | 200g |
| Touchscreen | without |
| Signal Type/interface Type | LVDS (1 ch, 6-bit) , 30 pins |
| Voltage Supply | 3.3V |
| Max. Ratings |
Storage Temp.: -30 ~ +80 (°C) Operating Temp.: -20 ~ +70 (°C) |
| Package |
TIANMA original package; 60 pcs/ctn; weight : 19.27Kgs; size : 565(L)mm x 483(W)mm x 312(H)mm |
