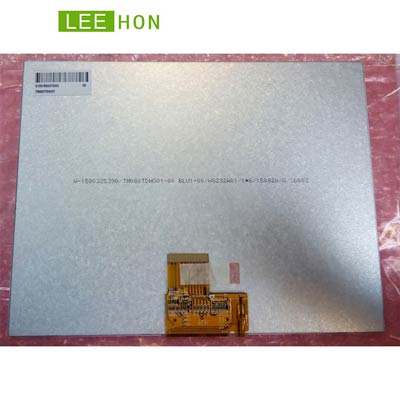

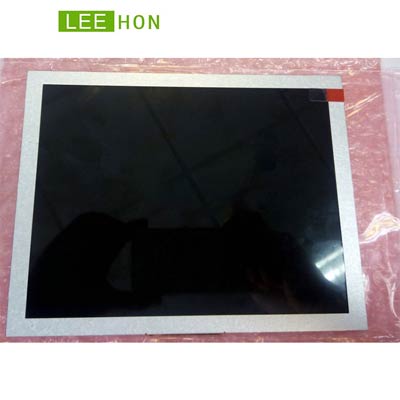

| Manufacturer | TIANMA |
| Model Name | TM080TDHG01-00 |
| Screen Size | 8 inch |
| Pixel Number | 1024(RGB)×768 , XGA |
| Active Area(mm) | 162.05 x 121.54 (H×V) |
| Outline(mm） | 183.0 x 141. 0 x 3.40 (H×V×D) |
| Pixel pitch(mm) | 0.158 x 0.158 (H×V) |
| Treatment |
Clear
|
| Luminance | 400 cd/m² (Typ.) |
| Contrast Ratio | 700 : 1 (Typ.) (TM) |
| Viewing Angle | 80/80/80/80(CR≥10) Left / Right/UP /Down |
| Response | 20 (Typ.)(Tr/Td) ms |
| Work Mode | TN , Normally white, Transmissive |
| Color Depth | 262K/16.7M , 50% NTSC |
| Backlight | WLED , 30K hours, without driver |
| Net Weight | 189g |
| Touchscreen | without |
| Signal Type/interface Type | LVDS (1 ch, 6/8-bit) , 40 pins , FPC |
| Voltage Supply | 3.3V |
| Max. Ratings |
Storage Temp.: -30 ~ +80 (°C) Operating Temp.: -20 ~ +70 (°C) |
| Package |
TIANMA Original Package; 48 pcs/ctn; weight : 11.035Kgs; size : 544(L)mm x 365(W)mm x 250(H)mm |
