| Manufacturer | TIANMA |

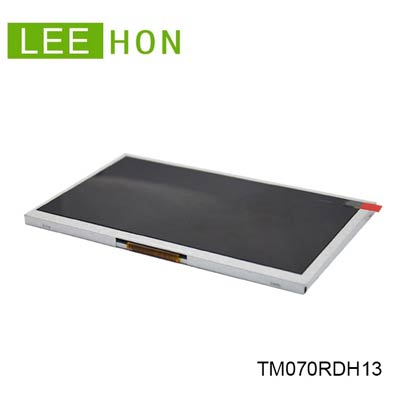

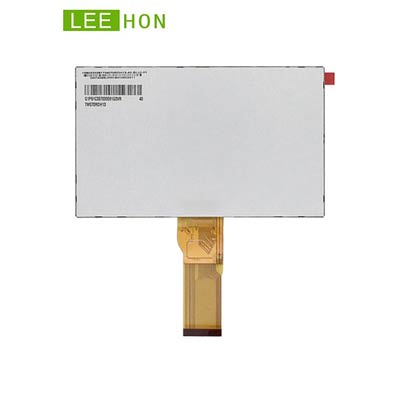

| Model Name | TM070RDH13 |
| Screen Size | 7 |
| Pixel Number | 800(RGB)×480, WVGA |
| Active Area(mm) | 154.08 × 85.92 (H×V) |
| Outline(mm） | 164.9 × 100 × 5.7 (H×V×D) |
| Pixel pitch(mm) | 0.1926 x 0.179 (H×V) |
| Treatment |
Anti Glare
|
| Luminance | 250 cd/m² (Typ.) |
| Contrast Ratio | 500 : 1 (Typ.) (TM) |
| Viewing Angle | 70/70/60/70(CR≥10) Left / Right/UP /Down |
| Response | 25 (Typ.)(Tr/Td) ms |
| Work Mode | TN , Normally white, Transmissive |
| Color Depth | 262K/16.7M , 55% NTSC |
| Backlight | WLED , 20K hours, without driver |
| Net Weight | 160g |
| Touchscreen | without |
| Signal Type/interface Type | Parallel RGB (1 ch, 6/8-bit) , FPC , 50 pins |
| Voltage Supply | 3.3V |
| Max. Ratings |
Storage Temp.: -30 ~ +80 (°C) Operating Temp.: -20 ~ +70 (°C) |
| Package |
TIANMA Original Package; 50 pcs/ctn; weight : TBD; size : 530(L)mm x 350(W)mm x 250(H)mm |
