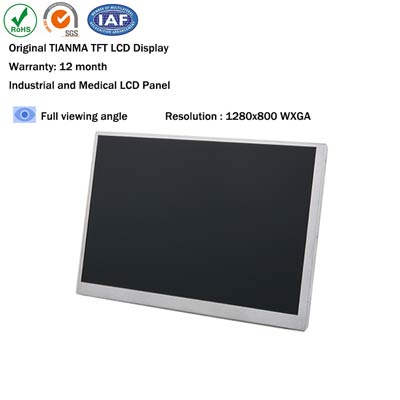

| Manufacturer | TIANMA |
| Model Name | TM070JDHG34 |
| Screen Size | 7 inch |
| Pixel Number | 1280(RGB)×800 , WXGA |
| Active Area(mm) | 149.76 × 93.60 (H×V) |
| Outline(mm） | 161.00 ×107.00 (H×V×D) |
| Pixel Pitch(mm) | 0.117 ×0.117 (H×V) |
| Treatment | HC |
| Luminance | 600 cd/m² (Typ.) |
| Contrast Ratio | 800 : 1 (Typ.) (TM) |
| Viewing Angle | 85/85/85/85 (CR≥10) Left / Right/UP /Down |
| Response time | 35 (Typ.)(Tr/Td) ms |
| Display Mode | SFT , Normally black , Transmissive |
| Color Depth | 262K/16.7M , 50% NTSC |
| Backlight | WLED , 50K hours , with LED Driver |
| Net Weight | 140g(Typ.) |
| Touchscreen | without |
| Signal Type/interface Type | LVDS (1 ch, 6/8-bit) , 20 pins |
| Voltage Supply | +3.3 V |
| Max. Ratings |
Storage Temp.: -30 ~ +80 (°C) Operating Temp.: -20 ~ +70 (°C) |
| Package |
Tianma Original package; 48 pcs/ctn; weight : 11.85Kgs; size : 544(L) x 365(W) x 250(H) mm |
