| Manufacturer | TIANMA |
| Model Name | P0700WVN1ME01 |
| Screen Size | 7 inch |
| Pixel Number | 800(RGB)×480 , WVGA |
| Active Area(mm) | 154.08 × 85.92 (H×V) |
| Outline(mm） | 164.9 × 100 × 5.7 (H×V×D) |
| Pixel Pitch(mm) | 0.1926 × 0.1926 (H×V) |
| Treatment | Anti-glare |
| Luminance | 300 cd/m² (Typ.) |
| Contrast Ratio | 800 : 1 (Typ.) (TM) |
| Viewing Angle | 80/80/80/80 (CR≥10) Left / Right/UP /Down |
| Response time | 20 (Typ.)(Tr/Td) ms |
| Display Mode | TN , Normally white , Transmissive |
| Color Depth | 16.7M , 50% NTSC |
| Backlight | WLED , 20K hours , without Driver |
| Net Weight | 160g |
| Touchscreen | without |
| Signal Type/interface Type | Parallel RGB (1 ch, 6/8-bit) , FPC , 50 pins |
| Voltage Supply | +3.3 V |
| Max. Ratings | Storage Temp.: -30 ~ +80 (°C) Operating Temp.: -20 ~ +70 (°C) |
| Package | Tianma Original package; 60 pcs/ctn; weight : 15.3Kgs; size : 544(L) x 345(W) x 250(H) mm |

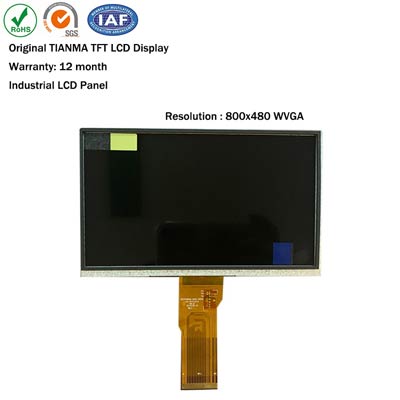

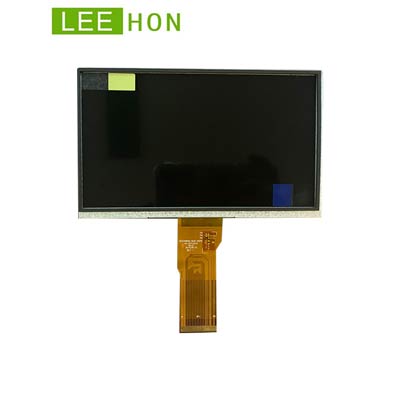

TIANMA 7 inch tft lcd panel P0700WVN1ME01 with 800(RGB)x480 WVGA resolution, brightness 300 cd/m². This lcd display's working temperature is -20 ~ +70 (°C) and it's storage temperature is -30 ~ +80 (°C). Based on it's white LED backlight. This model is recommended for industrial use.
Matched resistive touch and capacitive touch available. Also we have matched HDMI driver board.
Industrial 7 inch 800*480 WVGA LCD Screen Original TIANMA TFT Display P0700WVN1ME01 with 300 nits and RGB interface.
Hangzhou LEEHON Technology is one of the main agents of AUO/BOE / Kyocera/ Innolux TFT- LCD module in China
mainland, founded in 2009, the products vary from 2.5 to 43 inches, which include GD (Industrial grade), AV (car class),
PID (General Application) and other related products etc.,superior quality and competitive price, our products are sold
very well in North&South America, Western Europe and Southeast Asia.
We can supply total set of display solution:
TFT LCD screen + touch screen + controller board + cables + open frame.
stock for sale
long-time supply
no MOQ
in fulll range
