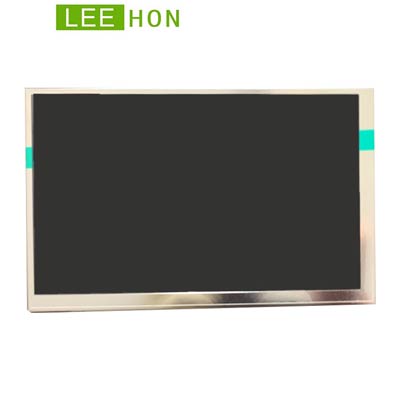

P0700WVN1MA00

Your location： Home
  • Products
  • TIANMA
  • 7.0
    • Module No：P0700WVN1MA00
    • Brand：TIANMA
    • Size：7 inch
    • Resolution：800(RGB)×480 , WVGA
    • Brightness：1000 cd/m²
    • Viewing angle：70/70/60/70 (Typ.)
    • Interface：TTL (1 ch, 8-bit) , FPC , 50 pins
    • CR：1000:1
    • Operating Temp.: -30 ~ +85 (°C)
    • Parameters
    • Description
    • Manufacturer  TIANMA
      Model Name P0700WVN1MA00
      Screen Size 7 inch
      Pixel Number 800(RGB)×480 , WVGA
      Active Area(mm) 154.08 x 85.92 (H×V)
      Outline(mm） 164.9 x 100.0 x 5.7 (H×V×D)
      Pixel Pitch(mm)
      		 0.1926 x 0.1926 (H×V)
      Treatment
      Anti-Glare
      Luminance 1000 cd/m² (Typ.)
      Contrast Ratio 1000 : 1 (Typ.) (TM)
      Viewing Angle 70/70/60/70(CR≥10) Left / Right/UP /Down
      Response 25 (Typ.)(Tr/Td) ms
      Work Mode TN, Normally white, Transmissive
      Color Depth 16.7M , 50% NTSC
      Backlight WLED , 50K hours, without driver
      Net Weight 160g
      Touchscreen without
      Signal Type/interface Type TTL (1 ch, 8-bit) , FPC , 50 pins
      Voltage Supply 3.3V
      Max. Ratings Storage Temp.: -40 ~ +90 (°C)
      Operating Temp.: -30 ~ +85 (°C)
      Package TIANMA Original package;
      48 pcs/ctn;
      weight : 13.3Kgs;
      size : 544(L)mm x 365(W)mm x 250(H)mm

    • TIANMA 7 inch tft lcd panel P0700WVN1MA00 with 800(RGB)x480 WVGA resolution , brightness 1000 cd/m². This lcd display is working temperature is -30 ~ +85 (°C) and its storage temperature is  -40 ~ +90 (°C). Based on its white LED backlight.This model is recommended for industrial use and outdoor highlight.
      Matched Resistive touch and Capacitive touch available.also we have matched HDMI driver board and LVDS cables.
      High Brightness 7 inch 800x480 WVGA TIANMA TFT LCD Screen P0700WVN1MA00 with 1000 cd/m2 Sunlight Readable, Touchscreen and Controller board.


      Hangzhou LEEHON Technology is one of the main agents of AUO/BOE / Kyocera/ Innolux TFT- LCD module in China mainland, founded in 2009, the products vary from 2.5 to 43 inches, which include GD (Industrial grade), AV (car class), PID (General Application) and other related products etc.,superior quality and competitive price, our products are sold very well in North&South America, Western Europe and Southeast Asia.
      We can supply total set of display solution:
      TFT LCD screen + touch screen + controller board + cables + open frame.
      stock for sale
      long-time supply
      no MOQ
      in fulll range
