P0650VGF1MA01

Your location: Home > Products > TIANMA > 6.5 >
  • Module No:P0650VGF1MA01
  • Brand:TIANMA
  • Size:6.5 inch
  • Resolution:640(RGB)×480 , VGA
  • Brightness:1200 cd/m²
  • Viewing angle:85/85/85/85 (Typ.)
  • Interface:Parallel RGB (1 ch, 8-bit) , 40 pins
  • CR:800:1
  • Operating Temp.: -30 ~ +80 (°C)
  • Parameters
  • Description
  • Manufacturer  TIANMA
    Model Name P0650VGF1MA01
    Screen Size 6.5 inch
    Pixel Number 800(RGB)×480, WVGA
    Active Area(mm)
    132.48(H) x 99.36(V)
    Outline(mm)
    154.00 x 121.00 x 7.10 (H×V×D)
    Pixel Pitch(mm)
    0.207h 0.207 (H×V)
    Treatment AG
    Luminance 1200 cd/m² (Typ.)
    Contrast Ratio 800 : 1 (Typ.) (TM)
    Viewing Angle 85/85/85/85 (Typ.)
    Response 30 (Typ.)(Tr/Td) ms
    Work Mode SFT, Normally black, Transmissive
    Color Depth 16.7M , 70% NTSC
    Backlight WLED, 100K hours, without driver
    Net Weight TBD
    Touchscreen without
    Signal Type/interface Type Parallel RGB (1 ch, 8-bit) , 40 pins
    Voltage Supply 3.3V
    Max. Ratings Storage Temp.: -40 ~ +9(°C)
    Operating Temp.: -30 ~ +8(°C)
    Package TIANMA original package

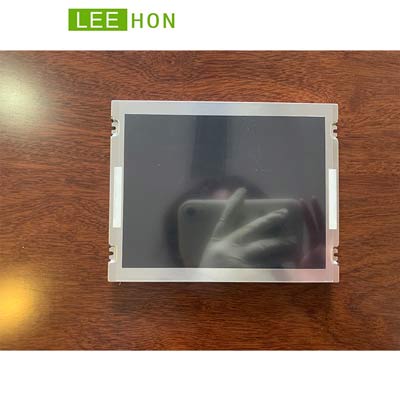

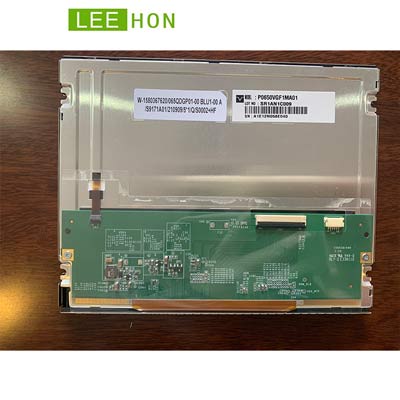

  • TIANMA 6.5 inch tft lcd panel P065VGF1MA01 with 640x480 VGA resolution , brightness 1200 cd/m².This lcd display is working temperature is -30 ~ +80 (°C) and its storage temperature is  -40 ~ +90 (° C).Based on its white LED backlight.This model is recommended for industrial use and outdoor highlight.
    Matched Resistive touch and Capacitive touch available.also we have matched HDMI driver board.
    High Brightness 6.5 inch 640x480 TIANMA IPS TFT LCD Panel P065VGF1MA01 with 1200 nits Sunlight readable And controller board.



    Hangzhou LEEHON Technology is one of the main agents of AUO/BOE / Kyocera/ Innolux TFT- LCD module in China mainland, founded in 2009, the products vary from 2.5 to 43 inches, which include GD (Industrial grade), AV (car class), PID (General Application) and other related products etc.,superior quality and competitive price, our products are sold very well in North&South America, Western Europe and Southeast Asia.
    We can supply total set of display solution:
    TFT LCD screen + touch screen + controller board + cables + open frame.
    stock for sale
    long-time supply
    no MOQ
    in fulll range
