| Manufacturer | TIANMA |

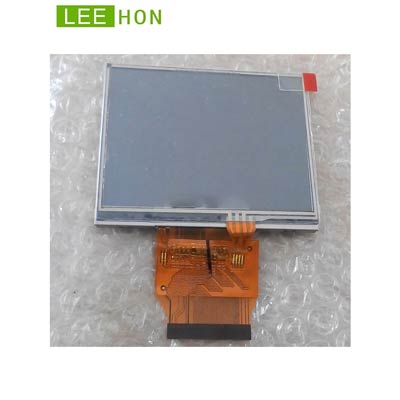

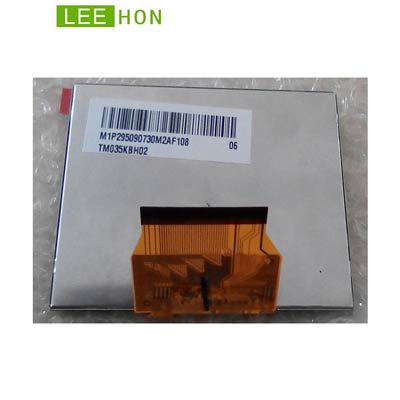

| Model Name | TM035KBH02-09 |
| Screen Size | 3.5 inch |
| Pixel Number | 320(RGB)×240 , QVGA |
| Active Area(mm) | 70.08 x 52.56 (H×V) |
| Outline(mm） | 76.90 x 63.90 x 4.0 (H×V×D) |
| Pixel pitch(mm) | 0.219 x 0.219 (H×V) |
| Treatment | Anti-gllare type 3H |
| Luminance | 420 cd/m² (Typ.) |
| Contrast Ratio | 500 : 1 (Typ.) (TM) |
| Viewing Angle | 70/70/60/70(CR≥10) Left / Right/UP /Down |
| Response | 25 (Typ.)(Tr/Td) ms |
| Work Mode | TN, Normally white, Transmissive |
| Color Depth | 16.7M , 50% NTSC |
| Backlight | WLED , 20K hours,without LED Driver |
| Net Weight | 40.0g |
| Touchscreen | without |
| Signal Type/interface Type | Digital RGB (8/24-bit) + SPI, CCIR601/656 , 54 pins , FPC |
| Voltage Supply | 3.3V |
| Max. Ratings |
Storage Temp.: -30 ~ +70 (°C) Operating Temp.: -20 ~ +60 (°C) |
| Package |
TIANMA original package; 168 pcs/ctn; weight : 10.617Kgs; size : 530(L)mm x 350(W)mm x 250(H)mm |
