| Manufacturer | Kyocera |
| Model Name | TCG057VGLCS-H50 |
| Screen Size | 5.7 inch |
| Pixel Number | 640(RGB)×480 VGA |
| Active Area(mm) | 115.2(W)×86.4(H) |

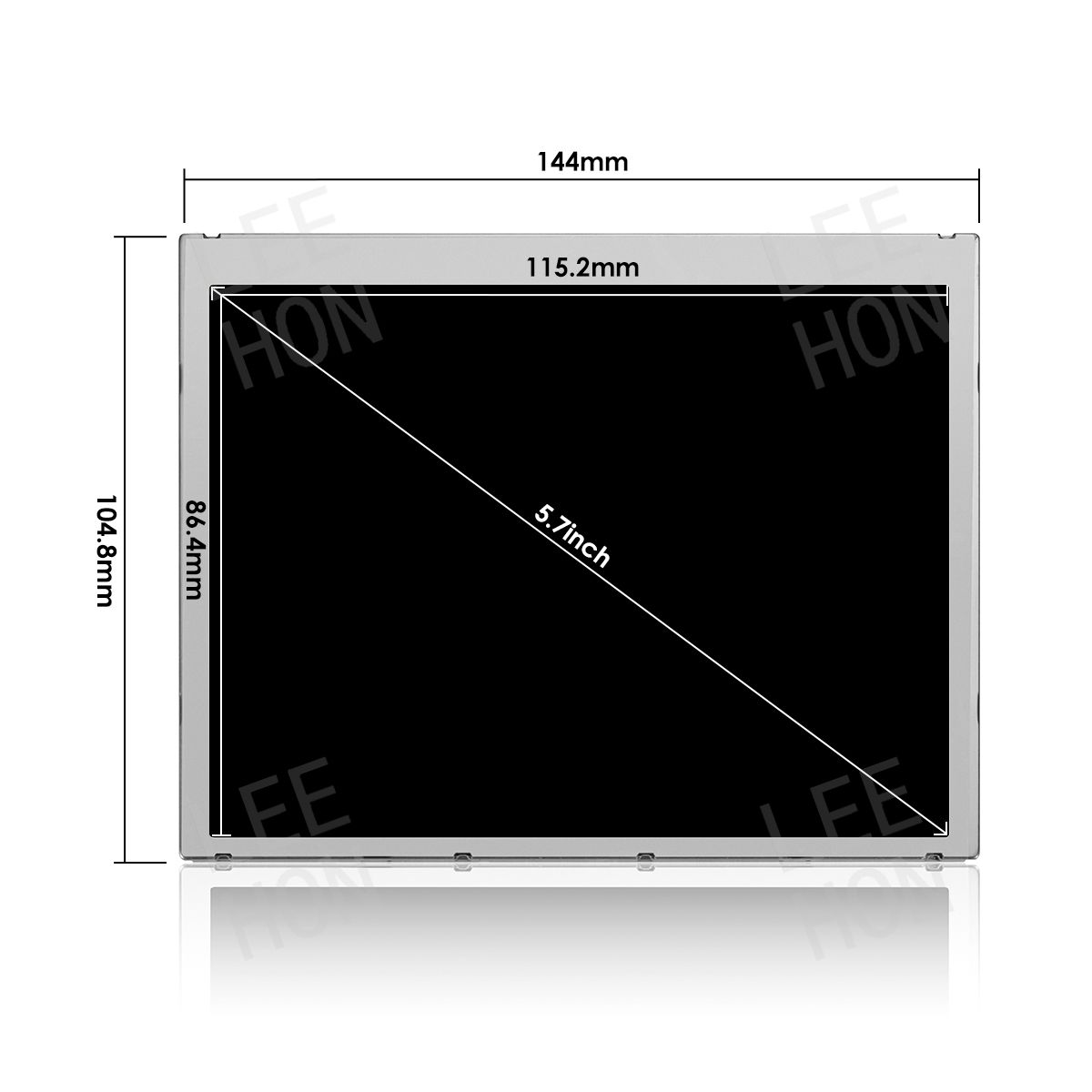

| Outline(mm） |
144(W)×(104.8)(H)×13(D)
|
| Dot pitch(mm) |
0.06(W)×0.18(H)
|
| Treatment |
Glare Low-reflection treatment
|
| Luminance | 800 cd/m² (Typ.) |
| Contrast Ratio | 500 : 1 (Typ.) (TM) |
| Viewing Angle | 80/80/80/80 (Typ.) |
| Response time | 10/25 (Typ.)(Tr/Td) ms |
| Display Mode | TN, Normally white, Transmissive |
| Color Depth |
262K , 52% NTSC
|
| Backlight | WLED, 50K hours,without driver |
| Net Weight | 210g |
| Touchscreen | without |
| Interface | Parallel RGB (1 ch, 6-bit) 33 pins |
| Voltage Supply | 3.3V |
| Max. Ratings |
Storage Temp.: -30 ~ 80 °C Operating Temp.: -20 ~70 °C |
| Package | Kyocera original packaging |
