| Manufacturer | IVO |

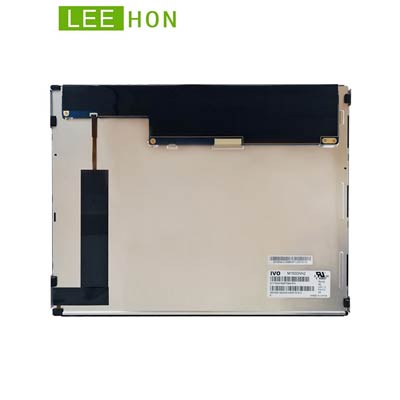

| Model Name | M150GNN2 R0 |
| Screen Size | 15 inch |
| Pixel Number | 1024(RGB)×768 , XGA |
| Active Area(mm) | 304.128 x 228.096 (H×V) |
| Outline(mm） | 326.5 x 253.5 x 12.5 (H×V×D) |
| Pixel Pitch(mm) | 0.297 x 0.297 (H×V) |
| Treatment | Anti-glare , Hard coating (3H) |
| Luminance | 500 cd/m² (Typ.) |
| Contrast Ratio | 800 : 1 (Typ.) (TM) |
| Viewing Angle | 80/80/80/80(CR≥10) Left / Right/UP /Down |
| Response time | 25 (Typ.)(Tr/Td) ms |
| Display Mode | TN , Normally white , Transmissive |
| Color Depth | 16.7M , 70% NTSC |
| Backlight | WLED , 50K hours , with LED Driver |
| Net Weight | 960g |
| Touchscreen | without |
| Signal Type/interface Type | LVDS (1 ch, 8-bit) , 20 pins |
| Voltage Supply | +3.3 V |
| Max. Ratings |
Storage Temp.: -30 ~ +85 (°C) Operating Temp.: -30 ~ +85 (°C) |
| Package |
IVO Original package; 14 pcs/ctn |
