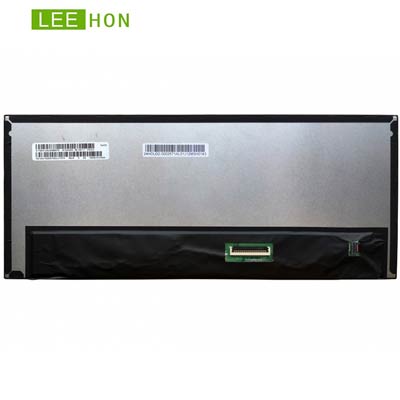

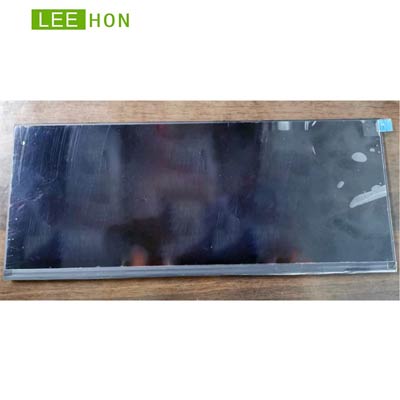

M123AWF4 R0

Your location： Home
  • Products
  • IVO
  • 12.3
    • Module No：M123AWF4 R0
    • Brand：IVO
    • Size：12.3 inch
    • Resolution：1920(RGB)×720
    • Brightness：1000 cd/m²
    • Viewing angle：85/85/85/85 (Typ.)
    • Interface：c
    • CR：1000:1
    • Operating Temp.: -30 ~ +85 (°C)
    • Parameters
    • Description
    • Manufacturer  IVO
      Model Name M123AWF4 R0
      Screen Size 12.3 inch
      Pixel Number 800(RGB)×480, WVGA
      Active Area(mm) 292.032 x 109.512 (H×V)
      Outline(mm） 299.032 x 123.012 x 8.023 (H×V×D)
      Pixel Pitch(mm) 0.1521 x 0.1521 (H×V)
      Treatment HC/3H
      Luminance 1000 cd/m² (Typ.)
      Contrast Ratio 1000 : 1 (Typ.) (TM)
      Viewing Angle 85/85/85/85 (CR≥10) Left / Right/UP /Down
      Response time 25 (Typ.)(Tr/Td) ms
      Display Mode IPS , Normally black , Transmissive
      Color Depth 16.7M , 75% NTSC
      Backlight WLED , 30K hours , with LED Driver
      Net Weight 380g
      Touchscreen without
      Signal Type/interface Type 85/85/85/85
      Voltage Supply +3.3 V
      Max. Ratings Storage Temp.: -40 ~ +90 (°C)
      Operating Temp.: -30 ~ +85 (°C)
      Package IVO Original package;
      20 pcs/ctn

    • IVO 12.3 inch tft lcd ips panel M123AWF4 R0 with 1920(RGB)x720 resolution, brightness 1000 cd/m². This lcd display's working temperature is -30 ~ +85 (°C) and it's storage temperature is -40 ~ +90 (°C). Based on it's white LED backlight. This model is recommended for industrial use and Outdoor Highlight.
      Matched Resistive touch and Capacitive touch available. Also we have matched HDMI driver board and LVDS cables.
      High Brightness 12.3 Inch 1920x720 LCD Panel Original IVO TFT LCD Panel IPS Display For Car M123AWF4 R0 with 1000nits, 50 pins LVDS and Cables.


      Hangzhou LEEHON Technology is one of the main agents of AUO/BOE / Kyocera/ Innolux TFT- LCD module in China mainland, founded in 2009, the products vary from 2.5 to 43 inches, which include GD (Industrial grade), AV (car class), PID (General Application) and other related products etc.,superior quality and competitive price, our products are sold very well in North&South America, Western Europe and Southeast Asia.
      We can supply total set of display solution:
      TFT LCD screen + touch screen + controller board + cables + open frame.
      stock for sale
      long-time supply
      no MOQ
      in fulll range
