| Manufacturer | IVO |

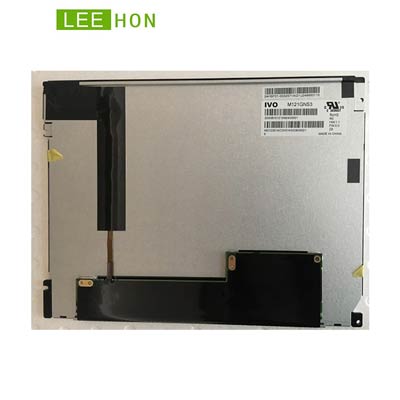

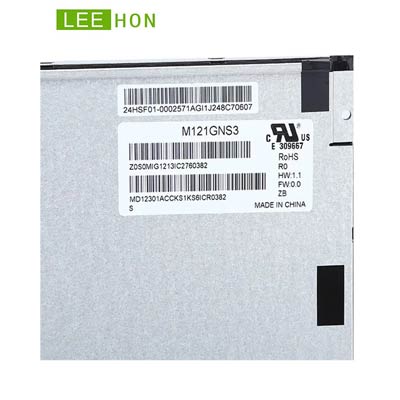

| Model Name | M121GNS3 R0 |
| Screen Size | 12.1 inch |
| Pixel Number | 800(RGB)×600 , SVGA |
| Active Area(mm) | 246.0 x 184.5 (H×V) |
| Outline(mm） | 276.0 x 209.0 x 9.1 (H×V×D) |
| Pixel Pitch(mm) | 0.3075 x 0.3075 (H×V) |
| Treatment |
Anti-glare,3H
|
| Luminance | 400 cd/m² (Typ.) |
| Contrast Ratio | 800 : 1 (Typ.) (TM) |
| Viewing Angle | 80/80/60/80(CR≥10) Left / Right/UP /Down |
| Response time | TBD (Typ.)(Tr/Td) ms |
| Display Mode | TN , Normally white , Transmissive |
| Color Depth | 262K , 50% NTSC |
| Backlight | WLED , 50K hours , with LED Driver |
| Net Weight | 665g |
| Touchscreen | without |
| Signal Type/interface Type | LVDS (1 ch, 6-bit) , 20 pins |
| Voltage Supply | +3.3 V |
| Max. Ratings |
Storage Temp.: -30 ~ +80 (°C) Operating Temp.: -20 ~ +70 (°C) |
| Package |
IVO Original package; 30 pcs/ctn |
