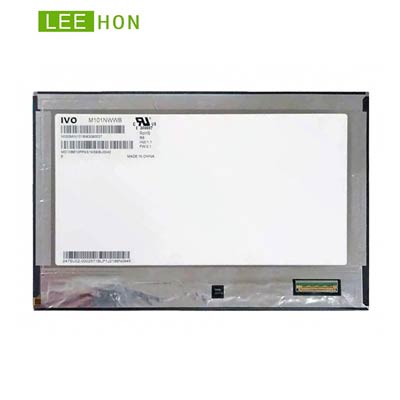

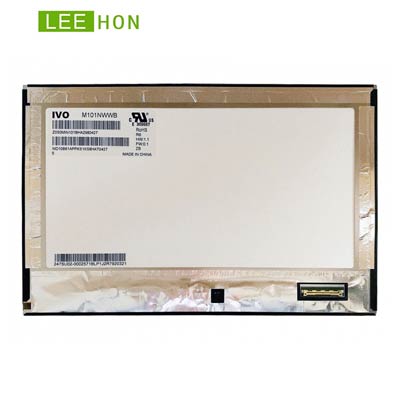

M101NWWB R6

Your location: Home > Products > IVO > 10.1 >
  • Module No:M101NWWB R6
  • Brand:IVO
  • Size:10.1 inch
  • Resolution:1280(RGB)×800 , WXGA
  • Brightness:350 cd/m²
  • Viewing angle:85/85/85/85 (Typ.)
  • Interface:LVDS (1 ch, 8-bit) , 40 pins
  • CR:800:1
  • Operating Temp.: 0 ~ +50 (℃)
  • Parameters
  • Description
  • Manufacturer  IVO
    Model Name M101NWWB R6
    Screen Size 10.1 inch
    Pixel Number 1280(RGB)×800 , WXGA
    Active Area(mm) 216.96 x 135.6 (H×V)
    Outline(mm) 229.46 x 149.1 x 2.8 (H×V×D)
    Pixel Pitch(mm) 0.1695 x 0.1695 (H×V)
    Treatment Anti-glare
    Luminance 350 cd/m² (Typ.)
    Contrast Ratio 800 : 1 (Typ.) (TM)
    Viewing Angle 85/85/85/85(CR≥10) Left / Right/UP /Down
    Response time 25 (Typ.)(Tr/Td) ms
    Display Mode IPS , Normally black , Transmissive
    Color Depth 16.7M , 45% NTSC
    Backlight WLED , 15K hours , with LED Driver
    Net Weight 160g
    Touchscreen without
    Signal Type/interface Type LVDS (1 ch, 8-bit) , 40 pins
    Voltage Supply +3.3 V
    Max. Ratings Storage Temp.: -20 ~ +6(°C)
    Operating Temp.: 0 ~ +5(°C)
    Package IVO Original package;
    40 pcs/ctn

  • IVO 10.1 inch TFT LCD Pane M101NWWB R6 with 1280(RGB)×800 WXGA resolution, brightness 950 cd/m². This lcd display is wide working temperature is 0 ~ +50 (°C) and it's wide storage temperature is  -20 ~ +60 (°C). Based on its white LED backlight. This model is recommended for industrial use.
    Matched Resistive touch and Capacitive touch available. Also we have matched HDMI driver board and LVDS cables.
    Industrial 10.1 Inch 1280x800 WXGA IVO TFT LCD Panel IPS LCD Display Original M101NWWB R6 with 350nit, LVDS 40 Pin And Controller Board.



    Hangzhou LEEHON Technology is one of the main agents of AUO/BOE / Kyocera/ Innolux TFT- LCD module in China mainland, founded in 2009, the products vary from 2.5 to 43 inches, which include GD (Industrial grade), AV (car class), PID (General Application) and other related products etc.,superior quality and competitive price, our products are sold very well in North&South America, Western Europe and Southeast Asia.
    We can supply total set of display solution:
    TFT LCD screen + touch screen + controller board + cables + open frame.
    stock for sale
    long-time supply
    no MOQ
    in fulll range
