| Manufacturer | IVO |

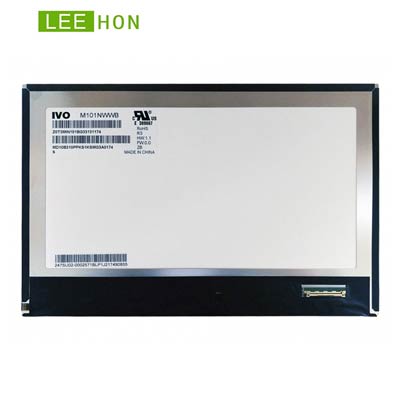

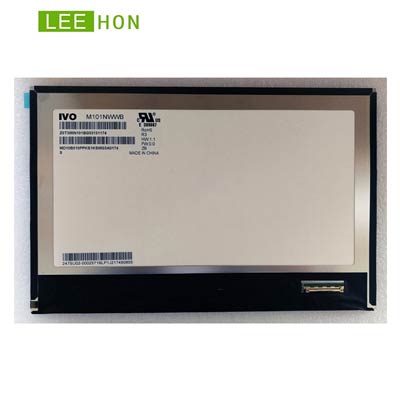

| Model Name | M101NWWB R3 |
| Screen Size | 10.1 inch |
| Pixel Number | 1280(RGB)×800 , WXGA |
| Active Area(mm) | 216.96 x 135.60 (H×V) |
| Outline(mm） | 229.46 x 149.10 x 2.80 (H×V×D) |
| Pixel Pitch(mm) | 0.1695 x 0.1695 (H×V) |
| Treatment |
glare+3H
|
| Luminance | 350 cd/m² (Typ.) |
| Contrast Ratio | 800 : 1 (Typ.) (TM) |
| Viewing Angle | 85/85/85/85(CR≥10) Left / Right/UP /Down |
| Response time | 25 (Typ.)(Tr/Td) ms |
| Display ModeI | IPS , Normally black , Transmissive |
| Color Depth | 16.7M , 45% NTSC |
| Backlight | WLED , 25K hours , with LED Driver |
| Net Weight | 160g |
| Touchscreen | without |
| Signal Type/interface Type | 85/85/85/85 |
| Voltage Supply | +3.3 V |
| Max. Ratings |
Storage Temp.: -30 ~ +80 (°C) Operating Temp.: -20 ~ +70 (°C) |
| Package |
IVO Original package; 40 pcs/ctn |
