| Manufacturer | IVO |

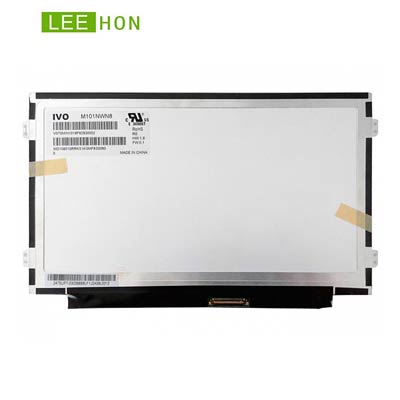

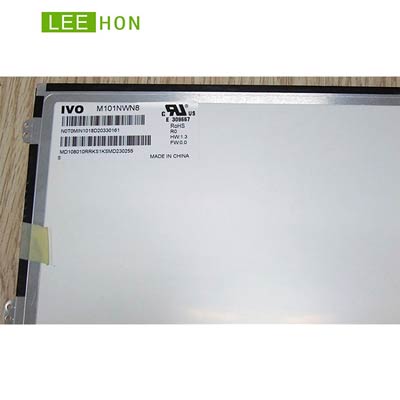

| Model Name | M101NWN8 R0 |
| Screen Size | 10.1 inch |
| Pixel Number | 1366(RGB)×768 , WXGA |
| Active Area(mm) | 222.5214 x 125.1072 (H×V) |
| Outline(mm） | 243 x 146.5 x 3.6 (H×V×D) |
| Pixel Pitch(mm) | 0.1629 x 0.1629 (H×V) |
| Treatment |
Anti-Glare+ HC(3H)
|
| Luminance | 220 cd/m² (Typ.) |
| Contrast Ratio | 500 : 1 (Typ.) (TM) |
| Viewing Angle | 45/45/15/35(CR≥10) Left / Right/UP /Down |
| Response time | 3/5 (Typ.)(Tr/Td) ms |
| Display Mode | TN , Normally white, Transmissive |
| Color Depth | 262K , 45% NTSC |
| Backlight | WLED , 15K hours , with LED Driver |
| Net Weight | 170g |
| Touchscreen | without |
| Signal Type/interface Type | LVDS (1 ch, 6-bit) , 40 pins |
| Voltage Supply | +3.3 V |
| Max. Ratings |
Storage Temp.: -20 ~ +60 (°C) Operating Temp.: 0 ~ +50 (°C) |
| Package |
IVO Original package; 50 pcs/ctn |
