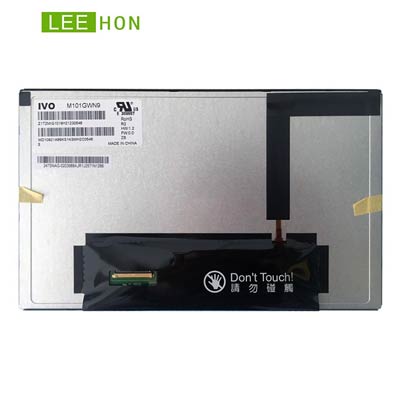

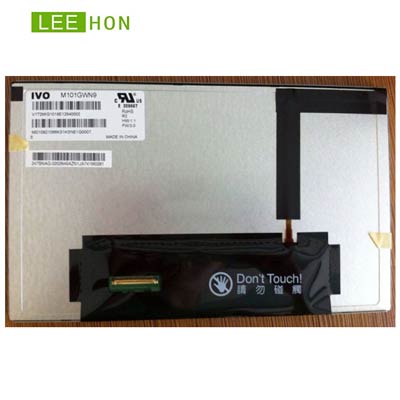

| Manufacturer | IVO |
| Model Name | M101GWN9 R2 |
| Screen Size | 10.1 inch |
| Pixel Number | 1024(RGB)×600 , WSVGA |
| Active Area(mm) | 222.72 x 125.28 (H×V) |
| Outline(mm） | 235 x 143 x 8.04 (H×V×D) |
| Pixel Pitch(mm) | 0.2175 x 0.2088 (H×V) |
| Treatment |
Anti-glare, Hard-Coating (3H)
|
| Luminance | 350 cd/m² (Typ.) |
| Contrast Ratio | 500 : 1 (Typ.) (TM) |
| Viewing Angle | 80/80/80/80(CR≥10) Left / Right/UP /Down |
| Response time | 16 (Typ.)(Tr/Td) ms |
| Display Mode | TN , Normally white , Transmissive |
| Color Depth | 16.7M , 45% NTSC |
| Backlight | WLED , 30K hours , with LED Driver |
| Net Weight | 341g |
| Touchscreen | without |
| Signal Type/interface Type | LVDS (1 ch, 8-bit) , 40 pins |
| Voltage Supply | +3.3 V |
| Max. Ratings |
Storage Temp.: -30 ~ +80 (°C) Operating Temp.: -20 ~ +70 (°C) |
| Package |
IVO Original package; 30 pcs/ctn |
