M101GWN9 R0

Your location: Home > Products > IVO > 10.1 >
  • Module No:M101GWN9 R0
  • Brand:IVO
  • Size:10.1 inch
  • Resolution:c
  • Brightness:500 cd/m²
  • Viewing angle:80/80/80/80 (Typ.)
  • Interface:LVDS (1 ch, 6/8-bit) , 20 pins
  • CR:500:1
  • Operating Temp.: -30 ~ +85 (°C)
  • Parameters
  • Description
  • Manufacturer  IVO
    Model Name M101GWN9 R0
    Screen Size 10.1 Inch
    Pixel Number M101GWN9 R0
    Active Area(mm) 222.72 x 125.28 (H×V)
    Outline(mm) 244.0 x 143.0 x 12.4 (H×V×D)
    Pixel Pitch(mm) 0.2175 x 0.2175 (H×V)
    Treatment
    Anti-glare, Hard-Coating (3H)
    Luminance 500 cd/m² (Typ.)
    Contrast Ratio 500 : 1 (Typ.) (TM)
    Viewing Angle 80/80/80/80(CR≥10) Left / Right/UP /Down
    Response time 16 (Typ.)(Tr/Td) ms
    Display Mode TN , Normally white , Transmissive
    Color Depth 262K/16.7M , 45% NTSC
    Backlight WLED , 50K hours , with LED Driver
    Net Weight 440g
    Touchscreen without
    Signal Type/interface Type LVDS (1 ch, 6/8-bit) , 20 pins
    Voltage Supply +3.3 V
    Max. Ratings Storage Temp.: -30 ~ +85 (°C)
    Operating Temp.: -30 ~ +85 (°C)
    Package IVO Original package;
    30 pcs/ctn

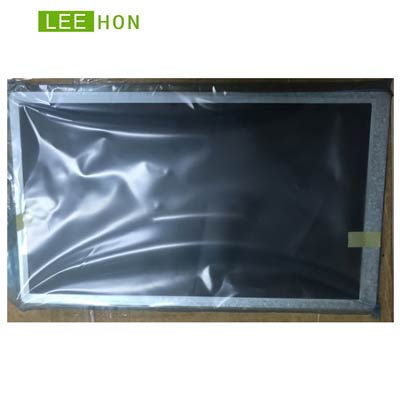

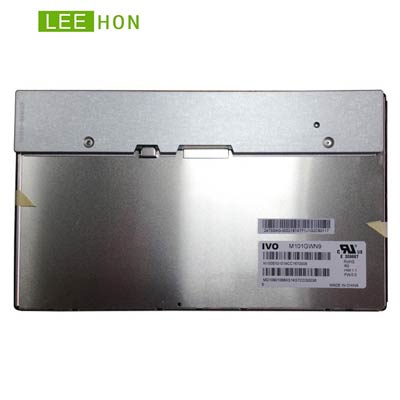

  • IVO 10.1 inch TFT LCD Pane M101GWN9 R0 with 1024(RGB)×600 WSVGA resolution, brightness 950 cd/m². This lcd display is wide working temperature is -30 ~ +85 (°C) and it's wide storage temperature is  -30 ~ +85 (°C). Based on its white LED backlight. This model is recommended for industrial use.
    Matched Resistive touch and Capacitive touch available. Also we have matched HDMI driver board and LVDS cables.
    Industrial 10.1 inch 1024x600 WSVGA IVO TFT LCD Panel For Indoor M101GWN9 R0 with 500nit, LVDS 20 Pin and Contoller board.



    Hangzhou LEEHON Technology is one of the main agents of AUO/BOE / Kyocera/ Innolux TFT- LCD module in China mainland, founded in 2009, the products vary from 2.5 to 43 inches, which include GD (Industrial grade), AV (car class), PID (General Application) and other related products etc.,superior quality and competitive price, our products are sold very well in North&South America, Western Europe and Southeast Asia.
    We can supply total set of display solution:
    TFT LCD screen + touch screen + controller board + cables + open frame.
