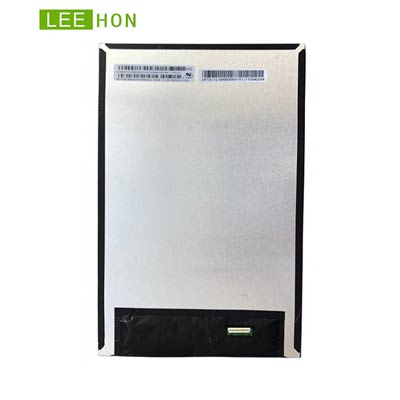

| Manufacturer | IVO |
| Model Name | M101GW4G R0 |
| Screen Size | 10.1 inch |
| Pixel Number | 1200(RGB)×1920 , WUXGA |
| Active Area(mm) | 135.36 x 216.576 (H×V) |
| Outline(mm） | 147.75 x 232.01 x 2.63 (H×V×D) |
| Pixel Pitch(mm) | 0.1128 x 0.1128 (H×V) |
| Treatment | Anti-glare |
| Luminance | 350 cd/m² (Typ.) |
| Contrast Ratio | 1000 : 1 (Typ.) (TM) |
| Viewing Angle | 85/85/85/85(CR≥10) Left / Right/UP /Down |
| Response time | 30 (Typ.)(Tr/Td) ms |
| Display Mode | IPS , Normally black , Transmissive |
| Color Depth | 16.7M , 67% NTSC |
| Backlight | WLED, 22K hours, without Driver |
| Net Weight | 155g |
| Touchscreen | without |
| Signal Type/interface Type | MIPI (4 data lanes) , 40 pins |
| Voltage Supply | +3.3 V |
| Max. Ratings |
Storage Temp.: -20 ~ +60 (°C) Operating Temp.: 0 ~ +60 (°C) |
| Package |
IVO Original package; 30 pcs/ctn |
