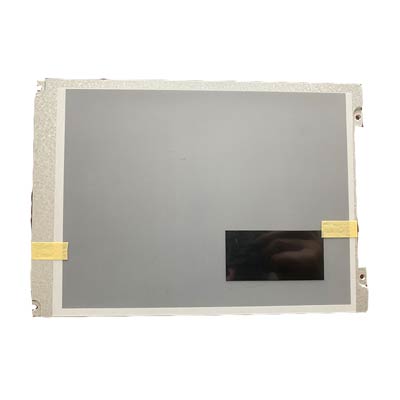

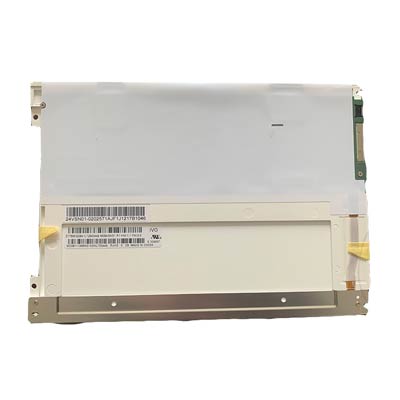

| Manufacturer | IVO |
| Model Name | M084GNS1 R1 |
| Screen Size | 8.4 inch |
| Pixel Number | 800(RGB)×600 , SVGA |
| Active Area(mm) | 170.4 x 127.8 (H×V) |
| Outline(mm） | 203.0 x 142.5 x 5.7 (H×V×D) |
| Pixel Pitch(mm) | 0.213 x 0.213 (H×V) |
| Treatment | Anti-glare |
| Luminance | 350 cd/m² (Typ.) |
| Contrast Ratio | 600 : 1 (Typ.) (TM) |
| Viewing Angle | 80/80/80/80(CR≥10) Left / Right/UP /Down |
| Response time | 16 (Typ.)(Tr/Td) ms |
| Display Mode | TN , Normally white , Transmissive |
| Color Depth | 262K/16.7M , 45% NTSC |
| Backlight | WLED , 50K hours , with LED Driver |
| Net Weight | 220g |
| Touchscreen | without |
| Signal Type/interface Type | LVDS (1 ch, 6/8-bit) , 20 pins |
| Voltage Supply | +3.3 V |
| Max. Ratings |
Storage Temp.: -30 ~ +80 (°C) Operating Temp.: -20 ~ +70 (°C) |
| Package |
IVO Original package; 40 PCS/CTN |
