M070AWPA R1

Your location: Home > Products > IVO > 7.0 >
  • Module No:M070AWPA R1
  • Brand:IVO
  • Size:7 inch
  • Resolution:800(RGB)×480 , WVGA
  • Brightness:1000 cd/m²
  • Viewing angle:85/85/85/85 (Typ.)
  • Interface:LVDS (1 ch, 8-bit) , FPC , 40 pins
  • CR:1000:1
  • Operating Temp.: -30 ~ +85 (°C)
  • Parameters
  • Description
  • Manufacturer  IVO
    Model Name M070AWPA R1
    Screen Size 7 inch
    Pixel Number 800(RGB)×480 , WVGA
    Active Area(mm) 152.4 x 91.44 (H×V)
    Outline(mm) 165.82 x 104.95 x 7.21 (H×V×D)
    Pixel Pitch(mm) 0.1905 x 0.1905 (H×V)
    Treatment HC , 3H
    Luminance 1000 cd/m² (Typ.)
    Contrast Ratio 1000 : 1 (Typ.) (TM)
    Viewing Angle 85/85/85/85(CR≥10) Left / Right/UP /Down
    Response time 20 (Typ.)(Tr/Td) ms
    Display Mode IPS , Normally black , Transmissive
    Color Depth 16.7M , 72% NTSC
    Backlight WLED , 30K hours , without Driver
    Net Weight 193g
    Touchscreen without
    Signal Type/interface Type LVDS (1 ch, 8-bit) , FPC , 40 pins
    Voltage Supply +3.3 V
    Max. Ratings Storage Temp.: -40 ~ +9(°C)
    Operating Temp.: -30 ~ +85 (°C)
    Package IVO Original package;
    40 pcs/ctn

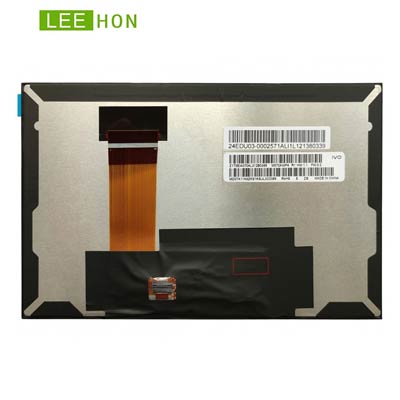

  • IVO 7 inch TFT LCD Pane M070AWPA R1 with 800(RGB)×480 resolution, brightness 1000 cd/m². This lcd display is wide working temperature is -30 ~ +85 (°C) and it's wide storage temperature is  -40 ~ +90 (°C). Based on its white LED backlight. This model is recommended for industrial use and Outdoor Highlight.
    Matched Resistive touch and Capacitive touch available. Also we have matched HDMI driver board.
    High Brightness 7 inch 800x480 IVO TFT LCD WVGA Panel IPS Display For Industry M070AWPA R1 with 1000nit, Controller Board and Touchscreen.



    Hangzhou LEEHON Technology is one of the main agents of AUO/BOE / Kyocera/ Innolux TFT- LCD module in China mainland, founded in 2009, the products vary from 2.5 to 43 inches, which include GD (Industrial grade), AV (car class), PID (General Application) and other related products etc.,superior quality and competitive price, our products are sold very well in North&South America, Western Europe and Southeast Asia.
    We can supply total set of display solution:
    TFT LCD screen + touch screen + controller board + cables + open frame.
    stock for sale
    long-time supply
    no MOQ
    in fulll range
