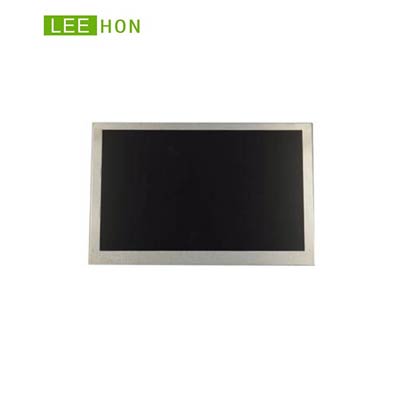

| Manufacturer | IVO |
| Model Name | M070AWAD R0 |
| Screen Size | 7 inch |
| Pixel Number | 1280(RGB)×720 , WXGA |
| Active Area(mm) | 154.752 x 87.048 (H×V) |
| Outline(mm） | 168.152 x 101.448 x 6.6 (H×V×D) |
| Pixel Pitch(mm) | 0.1209 x 0.1209 (H×V) |
| Treatment |
HC,3H
|
| Luminance | 1000 cd/m² (Typ.) |
| Contrast Ratio | 800 : 1 (Typ.) (TM) |
| Viewing Angle | 85/85/85/85(CR≥10) Left / Right/UP /Down |
| Response time | 20 (Typ.)(Tr/Td) ms |
| Display Mode | IPS , Normally black , Transmissive |
| Color Depth | 16.7M , 73% NTSC |
| Backlight | WLED , 30K hours , without Driver |
| Net Weight | 187g |
| Touchscreen | without |
| Signal Type/interface Type | LVDS (1 ch, 8-bit) , FPC , 40 pins |
| Voltage Supply | +3.3 V |
| Max. Ratings |
Storage Temp.: -40 ~ +95 (°C) Operating Temp.: -30 ~ +85 (°C) |
| Package | IVO Original package |
