EJ080NA-05B

Your location: Home > Products > INNOLUX > 8.0" >
  • Module No:EJ080NA-05B
  • Brand:INNOLUX
  • Size:8 inch
  • Resolution:800(RGB)×600 , SVGA
  • Brightness:250 cd/m²
  • Viewing angle:70/70/50/70 (Typ.)
  • Interface:Parallel RGB (1 ch, 6/8-bit) , FPC , 50 pins
  • CR:500:1
  • Operating Temp.: -20 ~ +70 (°C)
  • Parameters
  • Description
  • Manufacturer Innolux
    Model Name EJ080NA-05B
    Screen Size 8 inch
    Pixel Number 800(RGB)×600 , SVGA
    Active Area(mm) 162.0(W) x 121.5(H)
    Outline(mm) 183.0(W) x 141.0(H) x 5.6(D)
    Treatment Anti-Glare
    Luminance 250 cd/m²
    Contrast Ratio 500:1
    Viewing Angle 70/70/50/70 (Typ.)
    Response 10/15ms
    Work Mode TN , Normally White , Transmissive
    Color Depth 262K/16.7M , 50% NTSC
    Backlight WLED , 20k hours , without driver
    Net Weight 241.0g
    Touchscreen without
    Signal Type/interface Type Parallel RGB (1 ch, 6/8-bit) , FPC , 50 pins
    Voltage Supply +3.3 V
    Temperature Storage Temp.: -30 ~ +80 (°C)
    Operating Temp.: -20 ~ +70 (°C)
    Package Innolux original package;
    30 pcs/carton;
    Carton size: 530(L)mm x 355(W)mm x 255(H)mm;
    Gross weight: 10.28Kgs(Typ.).

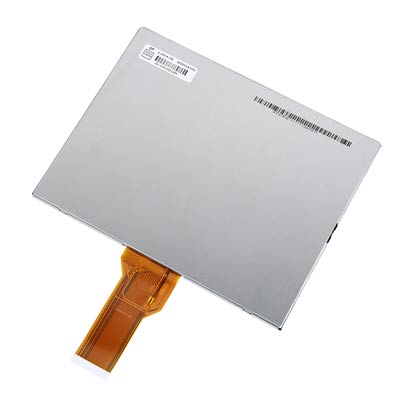

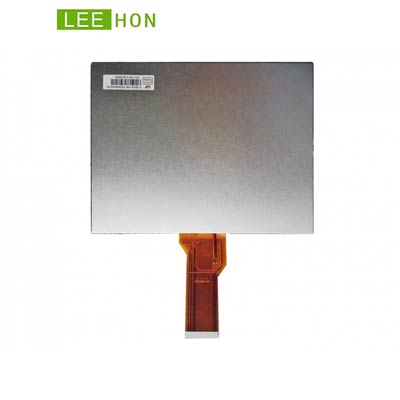

  • Innolux 8 inch tft lcd panel EJ080NA-05B with 800(RGB)x600 SVGA resolution, brightness 250 cd/m². This lcd display is working temperature is -20 ~ +70 (°C) and it's storage temperature is  -30 ~ +85 (°C). Based on it's white LED backlight. This model is recommended for industrial use.
    Matched Resistive touch and Capacitive touch available. Also we have matched HDMI driver board.
    Original Innolux 8 inch 800x600 SVGA TFT LCD Panel RGB 50 Pin LCD Screen EJ080NA-05B with 250nits, Touchscreen and Driver board.



    Hangzhou LEEHON Technology is one of the main agents of AUO/BOE / Kyocera/ Innolux TFT- LCD module in China mainland, founded in 2009, the products vary from 2.5 to 43 inches, which include GD (Industrial grade), AV (car class), PID (General Application) and other related products etc.,superior quality and competitive price, our products are sold very well in North&South America, Western Europe and Southeast Asia.
    We can supply total set of display solution:
    TFT LCD screen + touch screen + controller board + cables + open frame.
    stock for sale
    long-time supply
    no MOQ
    in fulll range
