G070Y3-T01

Your location: Home > Products > INNOLUX > 7.0" >
  • Module No:G070Y3-T01
  • Brand:Innolux
  • Size:7 inch
  • Resolution:800(RGB)×480 , WVGA
  • Brightness:600 cd/m²
  • Viewing angle:70/70/60/60 (Typ.)
  • Interface:TTL (1 ch, 6-bit) , 50 pins , FPC
  • CR:650:1
  • Operating Temp.: -30 ~ +85 (°C)
  • Parameters
  • Description
  • Manufacturer  Innolux
    Model Name G070Y3-T01
    Screen Size 7 inch
    Pixel Number 800(RGB)×480 , WVGA
    Active Area(mm) 156.0 x 82.8 (H×V)
    Outline(mm) 168.0 x 94.0 x 6.35 (H×V×D)
    Pixel Pitch(mm) 0.1950 x 0.1725 (H×V)
    Treatment
    Hard Coating ( 3H ), AG ( Haze 25 % )
    Luminance 600 cd/m² (Typ.)
    Contrast Ratio 650 : 1 (Typ.) (TM)
    Viewing Angle 70/70/60/60(CR≥10) Left / Right/UP /Down
    Response time 5/11(Typ.)(Tr/Td) ms
    Display Mode TN , Normally white , Transmissive
    Color Depth 262K , 60% NTSC
    Backlight WLED , 30K hours , without Driver
    Net Weight 180g
    Touchscreen without
    Signal Type/interface Type TTL (1 ch, 6-bit) , 50 pins , FPC
    Voltage Supply +3.3 V
    Max. Ratings Storage Temp.: -40 ~ +9(°C)
    Operating Temp.: -30 ~ +85 (°C)
    Package Innolux Original package;
    40 pcs/ctn;
    weight : 15.5Kgs;
    size : 435(L)mm x 350(W)mm x 265(H)mm

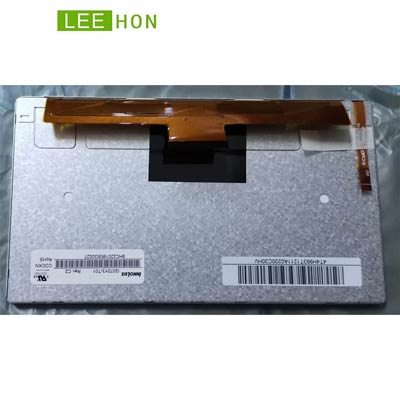

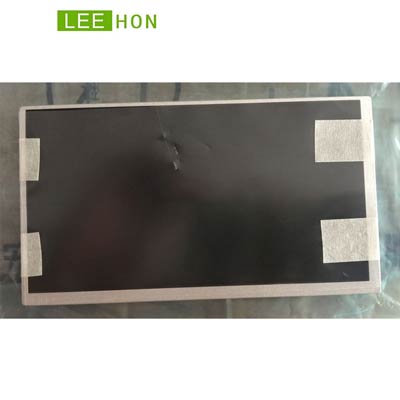

  • Chimei Innolux 7 inch tft lcd panel G070Y3-T01 with 800(RGB)x480 WVGA resolution, brightness 600 cd/m². This lcd display is working temperature is -30 ~ +85 (°C) and its storage temperature is  -40 ~ +90 (°C). Based on its white LED backlight.This model is recommended for industrial use.
    Matched Resistive touch and Capacitive touch available. Also we have matched HDMI driver board.
    Original Chimei Innolux 7 inch 800x480 WVGA TFT LCD Screen TTL LCD Panel For Innolux G070Y3-T01 With 600nit, Driver Board and Touchscreen.




    Hangzhou LEEHON Technology is one of the main agents of AUO/BOE / Kyocera/ Innolux TFT- LCD module in China mainland, founded in 2009, the products vary from 2.5 to 43 inches, which include GD (Industrial grade), AV (car class), PID (General Application) and other related products etc.,superior quality and competitive price, our products are sold very well in North&South America, Western Europe and Southeast Asia.
    We can supply total set of display solution:
    TFT LCD screen + touch screen + controller board + cables + open frame.
    stock for sale
    long-time supply
    no MOQ
    in fulll range
