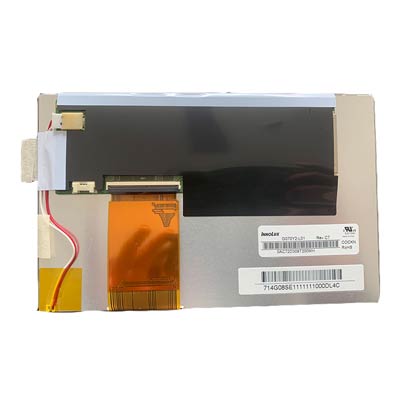

| Manufacturer | Innolux |
| Model Name | G070Y2-L01 |
| Screen Size | 7 inch |
| Pixel Number | 800(RGB)×480, WVGA |
| Active Area(mm) | 152.4 x 91.44 (H×V) |
| Outline(mm） | 165 x 104 x 9.53 (H×V×D) |
| Pixel Pitch(mm) | 0.1905 x 0.1905 (H×V) |
| Treatment |
Anti-glare, Hard Coating ( 3H )
|
| Luminance | 500 cd/m² (Typ.) |
| Contrast Ratio | 600 : 1 (Typ.) (TM) |
| Viewing Angle | 70/70/60/60(CR≥10) Left / Right/UP /Down |
| Response time | 5/11 (Typ.)(Tr/Td) ms |
| Display Mode | TN , Normally white , Transmissive |
| Color Depth | 262K/16.7M , 72% NTSC |
| Backlight | WLED , 50K hours , with LED Driver |
| Net Weight | 162g |
| Touchscreen | without |
| Signal Type/interface Type | LVDS (1 ch, 6/8-bit) , 20 pins |
| Voltage Supply | +3.3 V |
| Max. Ratings |
Storage Temp.: -40 ~ +95 (°C) Operating Temp.: -30 ~ +85 (°C) |
| Package |
Innolux Original package; 34 pcs/ctn; size : 465(L) x 362(W) x 314(H) mm |
