G070ACE-LH1

Your location: Home > Products > INNOLUX > 7.0" >
  • Module No:G070ACE-LH1
  • Brand:Innolux
  • Size:7 inch
  • Resolution:800(RGB)×480 , WVGA
  • Brightness:1000 cd/m²
  • Viewing angle:89/89/89/89 (Typ.)
  • Interface:LVDS (1 ch, 6/8-bit) , 30 pins
  • CR:800:1
  • Operating Temp.: -30 ~ +80 (°C)
  • Parameters
  • Description
  • Manufacturer  INNOLUX
    Model Name G070ACE-LH1
    Screen Size 7 inch
    Pixel Number 800(RGB)×480 , WVGA
    Active Area(mm) 152.4 x 91.44 (H×V)
    Outline(mm) 170 x 110 x 6 (H×V×D)
    Pixel Pitch(mm) 0.1905 x 0.1905 (H×V)
    Treatment
    AG type, 3H hard coating
    Luminance 1000 cd/m² (Typ.)
    Contrast Ratio 800 : 1 (Typ.) (TM)
    Viewing Angle 89/89/89/89(CR≥10) Left / Right/UP /Down
    Response time 13/12 (Typ.)(Tr/Td) ms
    Display Mode AAS , Normally black , Transmissive
    Color Depth 262K/16.7M , 59% NTSC
    Backlight WLED , 50K hours , with LED Driver
    Net Weight 196.0g
    Touchscreen without
    Signal Type/interface Type LVDS (1 ch, 6/8-bit) , 30 pins
    Voltage Supply +3.3 V
    Max. Ratings Storage Temp.: -30 ~ +85 (°C)
    Operating Temp.: -30 ~ +8(°C)
    Package InnoluxOriginal package;
    38 pcs/ctn;
    weight : 8.3Kgs;
    size : 445 (L)mm x 370 (W)mm x 275 (H)mm

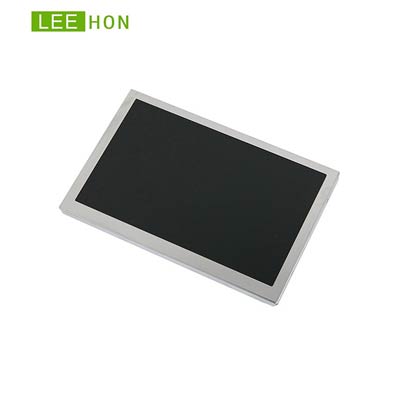

  • Innolux 7 inch tft lcd ips panel G070ACE-LH1 with 800(RGB)x480 WVGA resolution, brightness 1000 cd/m². This lcd display is working temperature is -30 ~ +80 (°C) and it's storage temperature is  -30 ~ +85 (°C). Based on it's white LED backlight. This model is recommended for industrial use and Outdoor Highlight.
    Matched Resistive touch and Capacitive touch available. Also we have matched HDMI driver board and LVDS cables.
    High Brightness 7 inch 800x480 WVGA Innolux TFT LCD Panel IPS LCD Display For Outdoor Highlight G070ACE-LH1 with 1000nits Sunlight Readable and LVDS 30 pins.



    Hangzhou LEEHON Technology is one of the main agents of AUO/BOE / Kyocera/ Innolux TFT- LCD module in China mainland, founded in 2009, the products vary from 2.5 to 43 inches, which include GD (Industrial grade), AV (car class), PID (General Application) and other related products etc.,superior quality and competitive price, our products are sold very well in North&South America, Western Europe and Southeast Asia.
    We can supply total set of display solution:
    TFT LCD screen + touch screen + controller board + cables + open frame.
    stock for sale
    long-time supply
    no MOQ
    in fulll range
