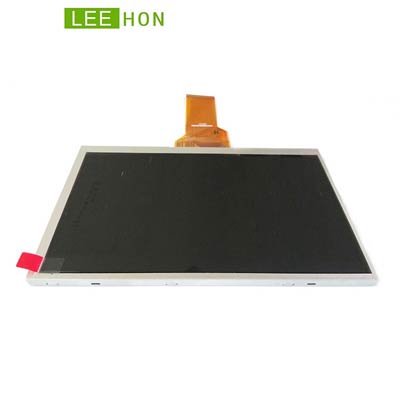

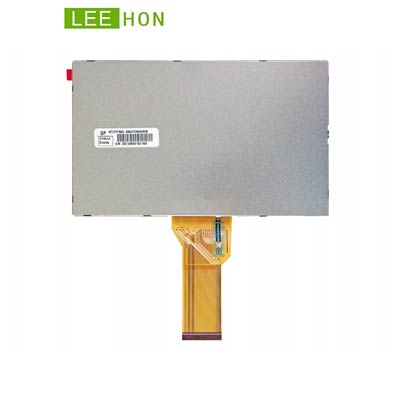

| Manufacturer | Innolux |
| Model Name | AT070TN94 |
| Screen Size | 7 inch |
| Screen Type | LCM, a-Si TFT-LCD |
| Pixel Number | 800(RGB)×480 , WVGA |
| Active Area(mm) | 154.08 x 85.92 (H×V) |
| Outline(mm） | 164.9 x 100 x 5.7 (H×V×D) |
| Bezel Area(mm) | 156.7 × 89.1 (H×V) |
| Treatment | Anti-glare , Hard coating (2H) , Anti-reflection |
| Luminance | 400 cd/m² (Typ.) |
| Contrast Ratio | 500 : 1 (Typ.) (TM) |
| Viewing Angle | 70/70/50/70 (Typ.)(CR≥10) Left / Right / Up / Down |
| Response | 10/15(Typ.)(Tr/Td) ms |
| Good View at | 6 O’CLOCK |
| Work Mode | TN , Normally White , Transmissive |
| Color Depth | 262K/16.7M , 50% |
| Backlight | WLED , 20K hours , without Driver |
| Net Weight | 154.0g (Typ.) |
| operating frequency | 60Hz |
| Touchscreen | without |
| Signal Type | Parallel RGB (1 ch, 6/8-bit) , 50 pins , FPC |
| Voltage Supply | +3.3 V |
| Max. Ratings |
Storage Temp.: -30 ~ +85 (°C) Operating Temp.: -30 ~ +85 (°C) |
| Package |
Innolux original package; 50 pcs/carton; Carton size : 530(L)mm x 355(Wmm x 255(H)mm |
